GROUNDBREAKER ULTIMATE 48V

QUALITY - SAFETY - SECURITY

CHASSIS

More details to come soon......

EXTERNAL

More details to come soon......

INTERNAL

More details to come soon......

PLUMBING

More details to come soon......

ELECTRICAL

More details to come soon......

Layouts

LAYOUT  NUMBER         -     21-54

BODY LENGTH               -     5670mm

BODY WIDTH                 -     2300mm

FULL WIDTH                  -      2500mm

FULL LENGTH                -      8110mm

INTERNAL HEIGHT        -     1960mm

FULL HEIGHT                 -      3200mm

Contact Us

LAYOUT  NUMBER         -     21-55

BODY LENGTH               -     5975mm

BODY WIDTH                 -     2300mm

FULL WIDTH                  -      2500mm

FULL LENGTH                -      8415mm

INTERNAL HEIGHT        -     1960mm

FULL HEIGHT                 -      3200mm

Contact Us

LAYOUT  NUMBER         -     21-56

BODY LENGTH               -     5975mm

BODY WIDTH                 -     2300mm

FULL WIDTH                  -      2500mm

FULL LENGTH                -      8415mm

INTERNAL HEIGHT        -     1960mm

FULL HEIGHT                 -      3200mm

Contact Us

LAYOUT  NUMBER         -     21-57

BODY LENGTH               -     6280mm

BODY WIDTH                 -     2300mm

FULL WIDTH                  -      2500mm

FULL LENGTH                -      8720mm

INTERNAL HEIGHT        -     1960mm

FULL HEIGHT                 -      3200mm

CLICK HERE TO VIEW 3D VIRTUAL TOUR

LAYOUT  NUMBER         -     21-59

BODY LENGTH               -     6280mm

BODY WIDTH                 -     2300mm

FULL WIDTH                  -      2500mm

FULL LENGHT                -      8720mm

INTERNAL HEIGHT        -     1960mm

FULL HEIGHT                 -      3200mm

Contact us

LAYOUT  NUMBER         -     21-61

BODY LENGTH               -     6585mm

BODY WIDTH                 -     2300mm

FULL WIDTH                  -      2500mm

FULL LENGTH                -      9025mm

INTERNAL HEIGHT        -     1960mm

FULL HEIGHT                 -      3200mm

CLICK HERE TO VIEW 3D VIRTUAL TOUR

LAYOUT  NUMBER         -     21-62

BODY LENGTH               -     6585mm

BODY WIDTH                 -     2300mm

FULL WIDTH                  -      2500mm

FULL LENGTH                -      9025mm

INTERNAL HEIGHT        -     1960mm

FULL HEIGHT                 -      3200mm

Contact Us

Technical Specifications

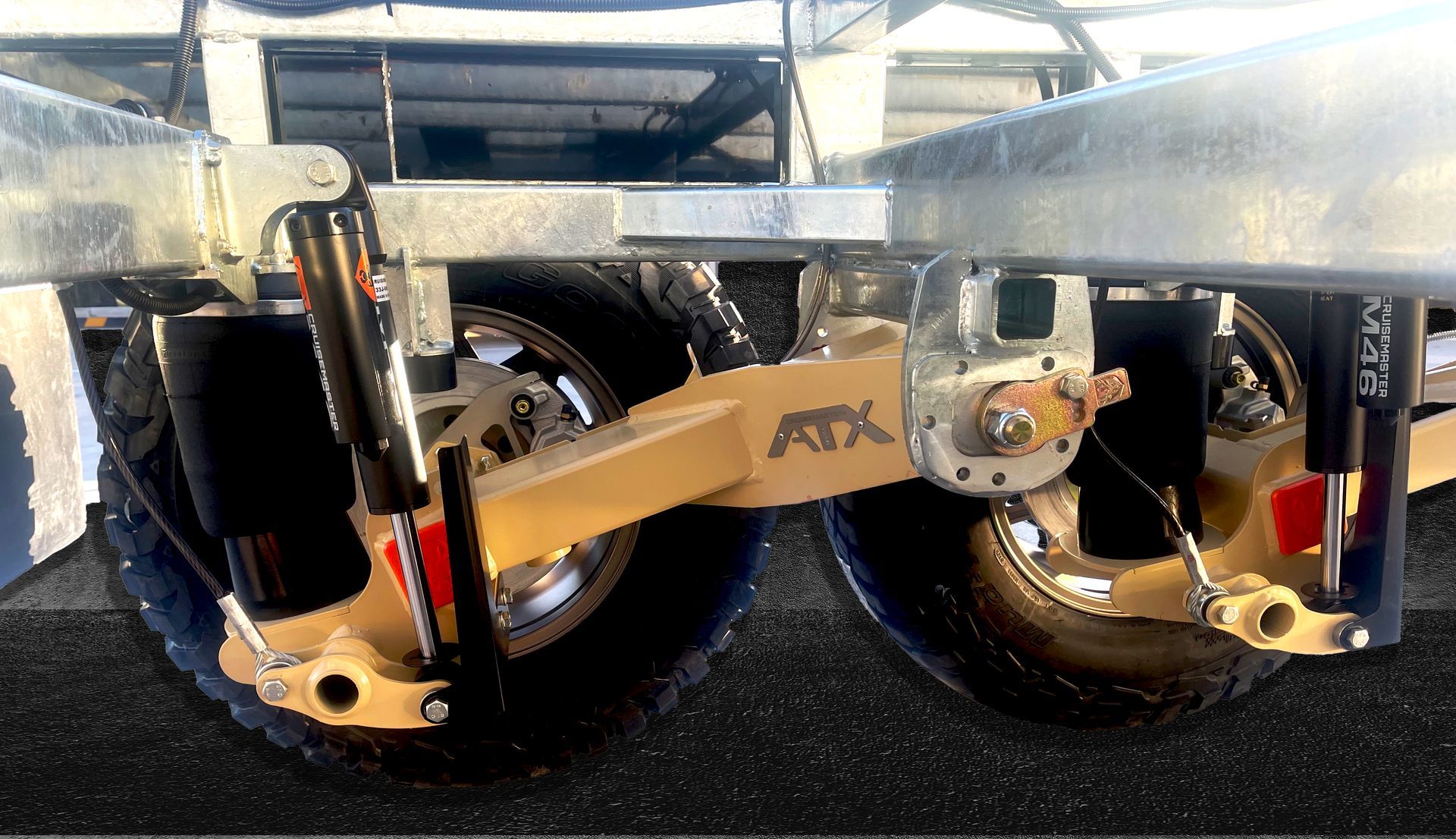

  • Cruse Master ATX Premium
  • 12” Ventilated Disc Brakes
  • Disc Brake Hydraulic Actuator
  • Wireless Air-Bags Level 3
  • Legend Truss Chassis
  • 6” Heavy Duty A-FRAME
  • A-Frame Extension
  • 265/75/16 MT
  • Wheels Theory 16”
  • Hot Dipped Galvanised Chassis
  • 4 Arm Legend B/Bar
  • Jerry Can Holders
  • Legend WoodBox on Rear Bar
  • 1 Spare Wheel on Rear Bar
  • Do45 Off-Road Coupling
  • One Piece Honeycomb Floor
  • X-Large Toolbox with Slides
  • Underslung Coupling
  • 4.5t Rated Chains
  • Jacking Points
  • Recovery Points
  • Skid Plates

Contact Us

  • Aluminium Frame construction
  • Aluminium Composite Walls
  • Checker or Dimple Plate
  • Checker or Dimple Front/Back
  • One Piece Fiberglass Insulated, Water and Hail Resistant Roof
  • One Piece Honeycomb Floor
  • Security Main Door Entry
  • AeroDynamic Front
  • Large Skylight with LED
  • Insulated Walls and Roof
  • Double Insulation on Roof
  • Lockable Access Hatches
  • Caravan Mudflaps
  • Stone Guard Protection
  • Dropdown Caravan Jacks
  • Double Dropdown Picnic Table
  • Electric Awning with LED
  • Full Underbody Armour
  • Carafan Dust Reduction Unit
  • Entertainment TV Locker
  • Premium Recovery Boards

Contact Us

  • Luxury 100% Leather Lounge
  • Club, Cafe or L Shape Lounge
  • Premium Head Rests on Lounge
  • Premium Leather Pelmets
  • Premium Roman Blinds
  • Telescopic + Turn Table leg
  • Solid Surface Water & Heat Resistant Benchtops
  • Rot Free Internal Walls
  • Lift-Up Bedframe on Struts
  • Innerspring Pillow Top Mattress
  • Acrylic Splash Back
  • Heavy Duty VInyl Floor
  • Fire Extinguisher
  • Premium Metal Drawer System
  • Soft Close Lockable Drawers
  • Premium Assisted Upper Cabinets
  • Premium Soft Close Hinges
  • Push Handles with Locks
  • Recessed Square Sink

Contact Us

  • Electric Hot Water System
  • External Shower Hot Cold
  • Legend Water Saver System
  • Wall Mount Washing Machine
  • Dual Induction Cooktop
  • Convection Micro-Oven
  • Ceramic Bowl Casete Toilet
  • Flick Mixer Taps Throughout
  • Large 224ltr - 2 Door Fridge
  • Portable Fridge In ToolBox
  • 3 x 95ltr Fresh Water Tanks
  • 1 x 110ltr Grey Water Tank
  • 3 Way Water Filter Tap
  • Diesel Heating System
  • Towel Rails in Ensuite
  • PVC Waste Pipes Throughout
  • Brass Fittings on Cold and Hot water & Water Tanks
  • Brass Quick fill Water Tanks
  • Electric Outdoor Kitchen

Contact Us

  • Fusion Colour Stereo with Fusion Soundbar Speakers
  • Double Power Points
  • Awning Amber/White Lights
  • Off-Side Amber/White Lights
  • Front and Rear Spotlights
  • 32” Smart TV
  • Reverse Cycle Air-Con
  • Reversing Camera Pack
  • USB Points Throughout
  • LED Strip Lights
  • Smart Control Lights

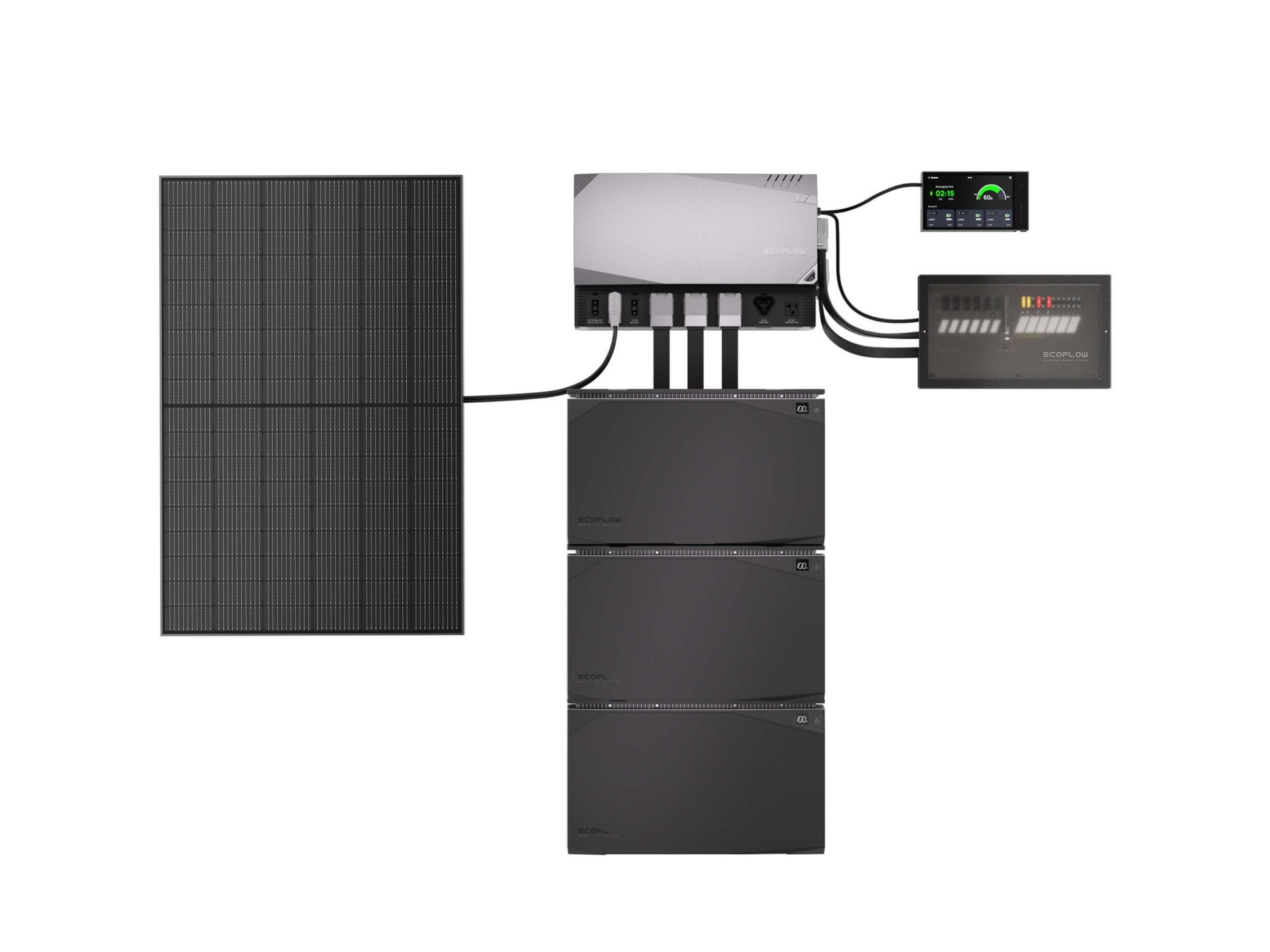

  • 48v ECOFLOW Ultimate BMS
  • 3600-7000w Premium Inverter
  • 15kwl Lithium 48v Battery
  • 1400w Solar Power
  • Electric Awning with LED
  • Double Electric Step
  • Caravan Rv Wi-Fi System

Contact Us
