TYCOON SLIDER

LUXURY ON-ROAD SERIES

CHASSIS

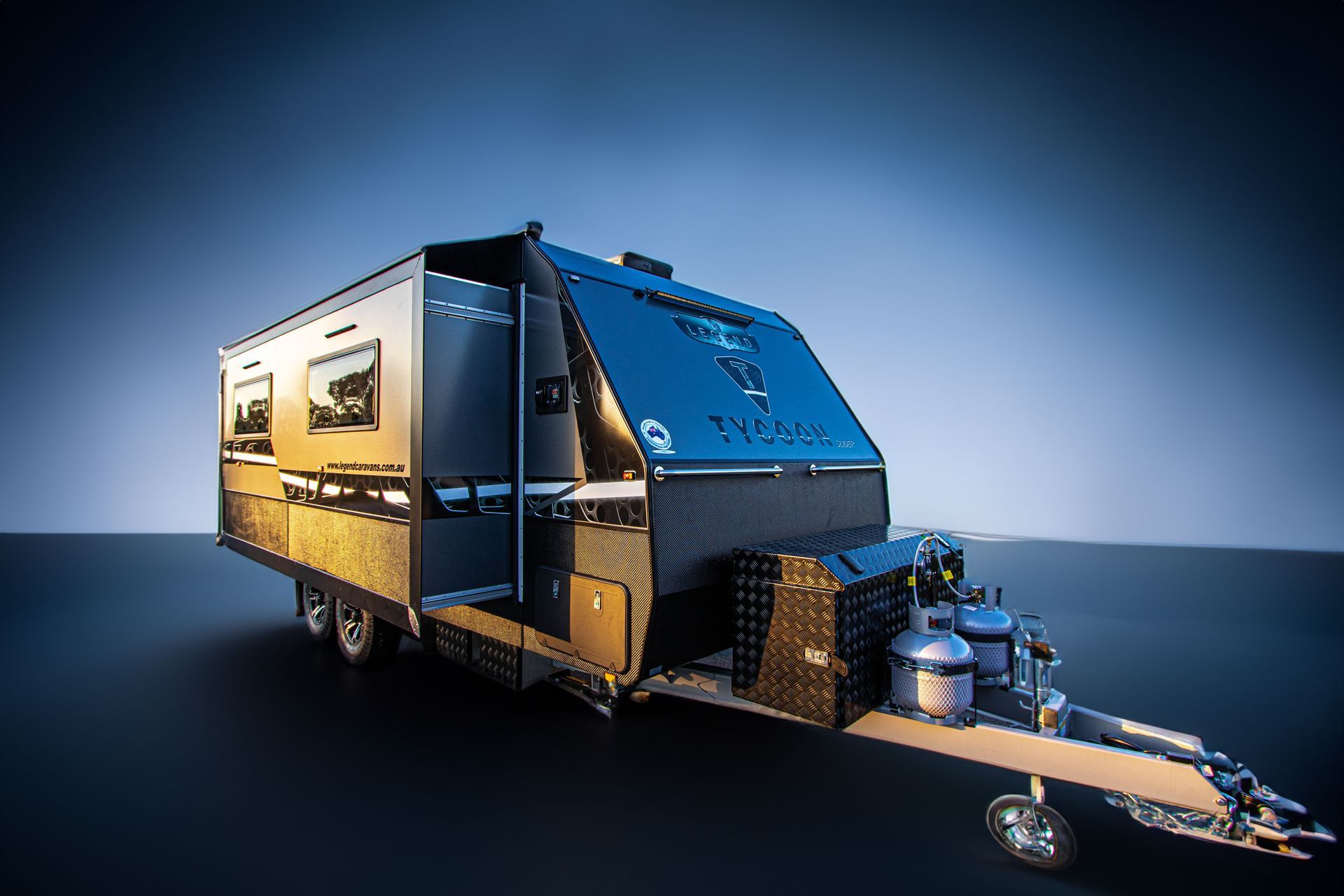

Caravans are, by their nature, usually pretty solid objects to start with, but what sets the Tycoon apart from many in the crowd is its tough shape and purposeful air. I

t looks beefy and strong right off the bat; it has a waistline of alloy checker plate, common in many off-road vans, All terrain tyres (including one spare on the rear bumper).

And that’s not to mention the other essentials like the DO45hitch, A frame extension... So does the Tycoon live up to its name? As always with such vans, you need to start with what lies underneath 8” Chassis is pretty special for this type of van and the independent Twin Shock Suspension which GTM can go up to 4t and atm up to 4.4t

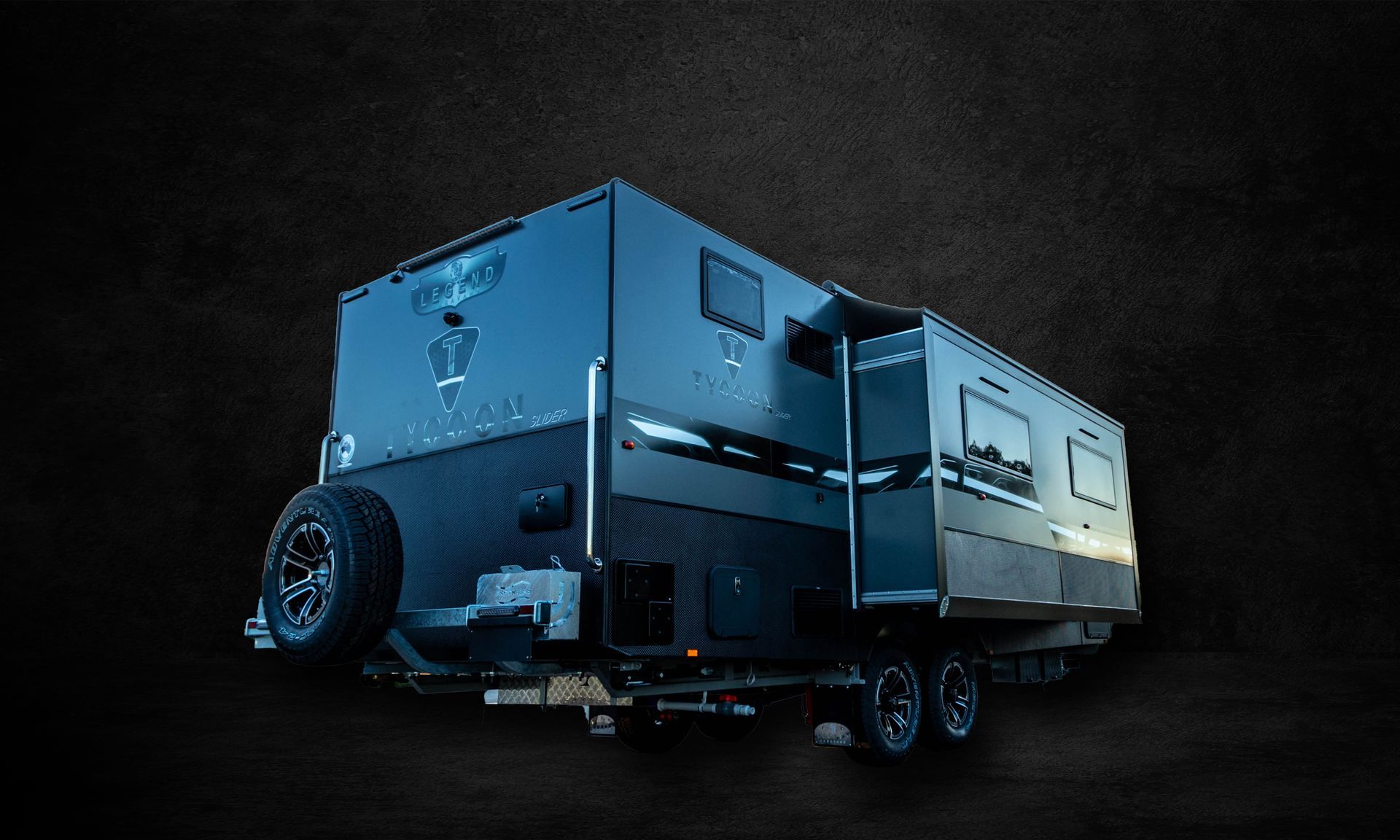

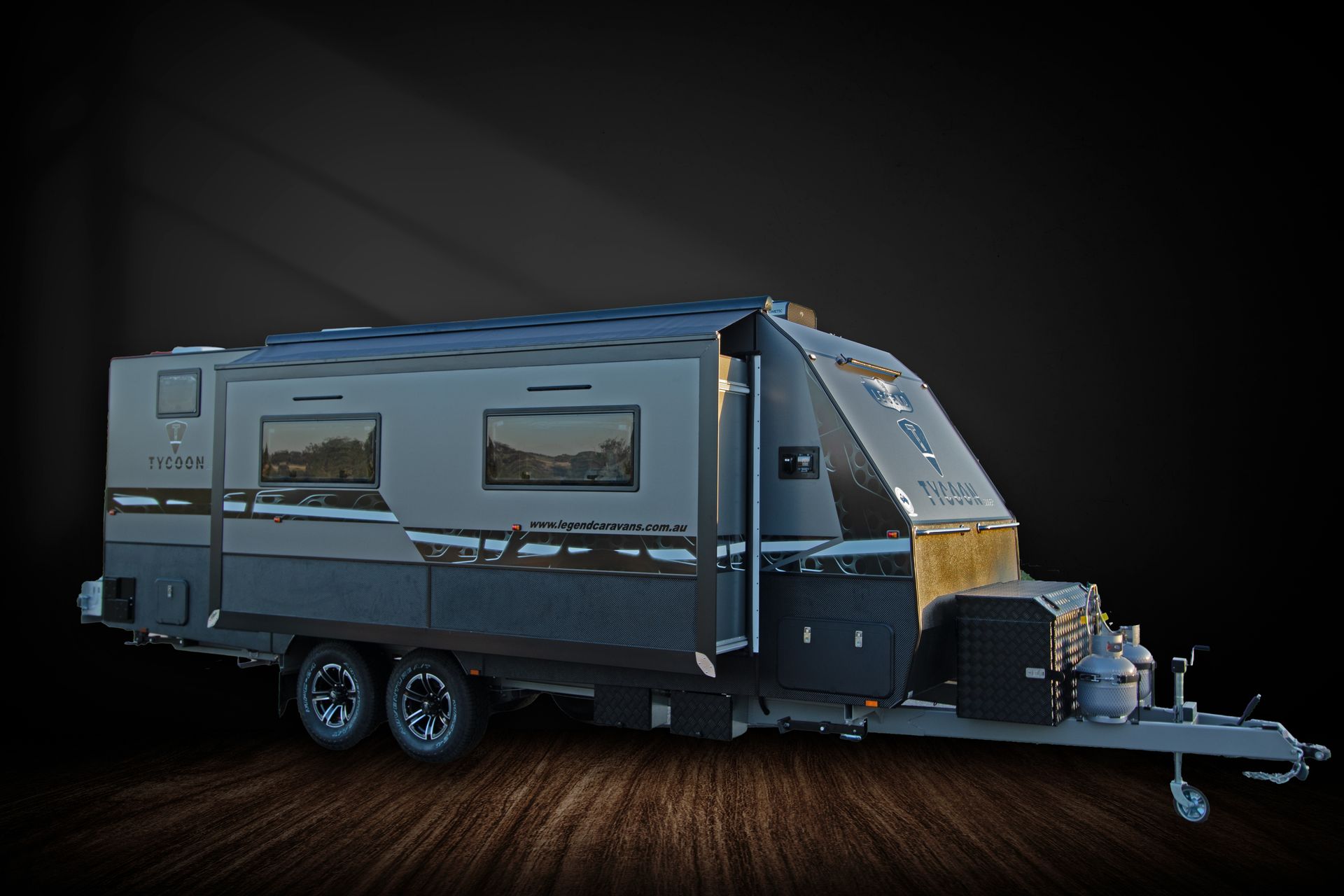

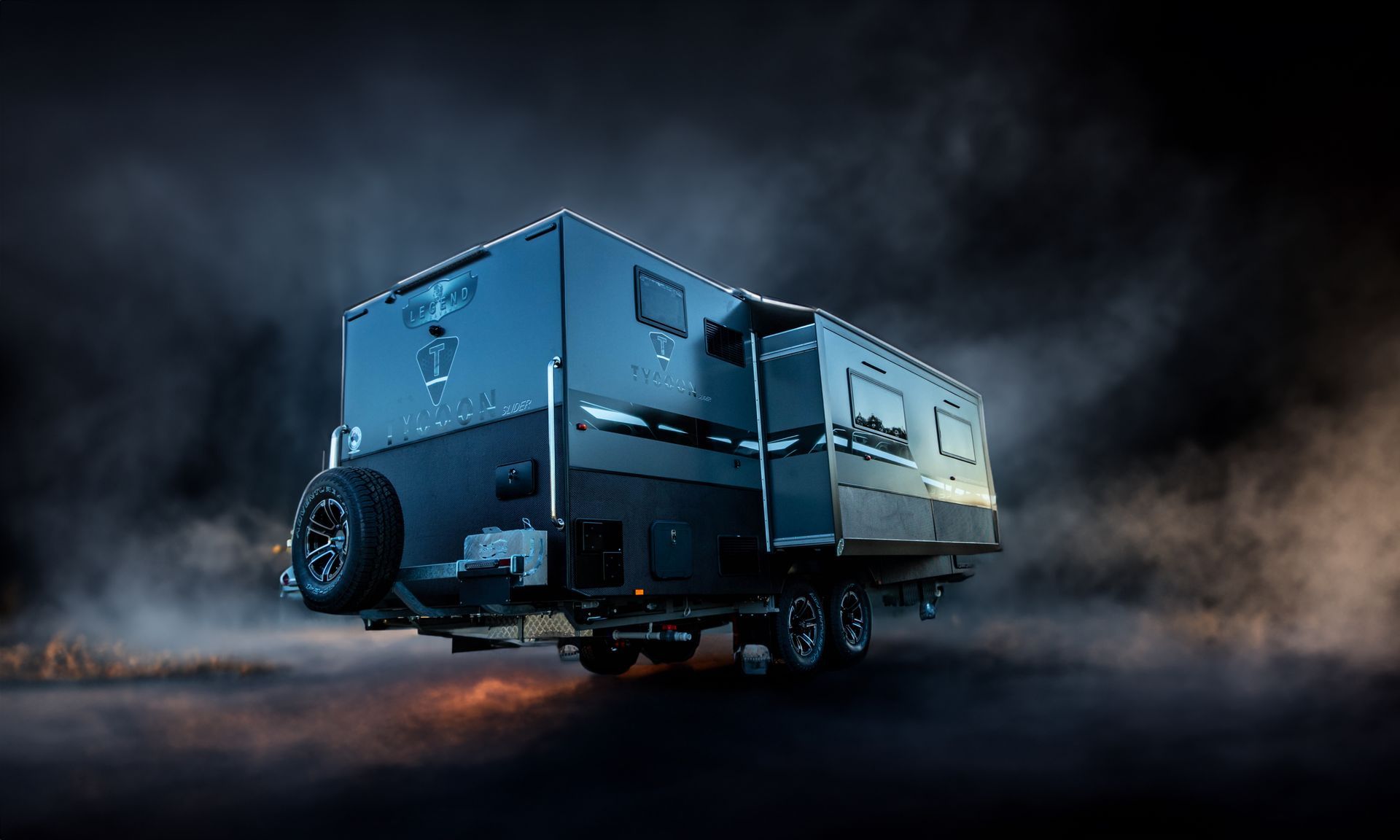

EXTERNAL

Style and comfort along with practicality and reliability when travelling is the norm these days.
the legend tycoon slider is certainly designed and built with that in mind.

At legend caravans we have manufactured the tycoon slider with aluminum frame and aluminium composite walls complimented with checker plate panels to the front and sides.

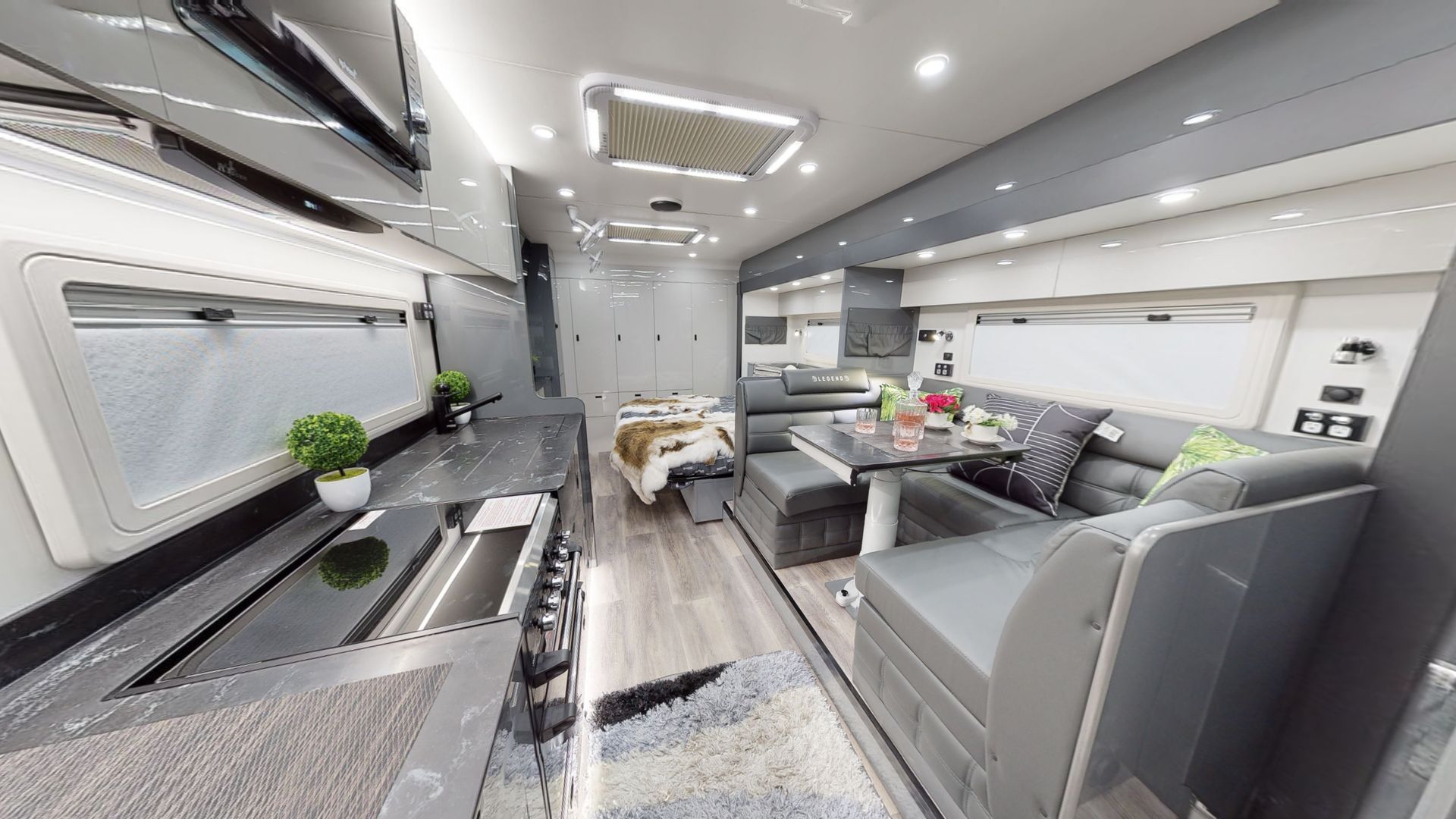

INTERNAL

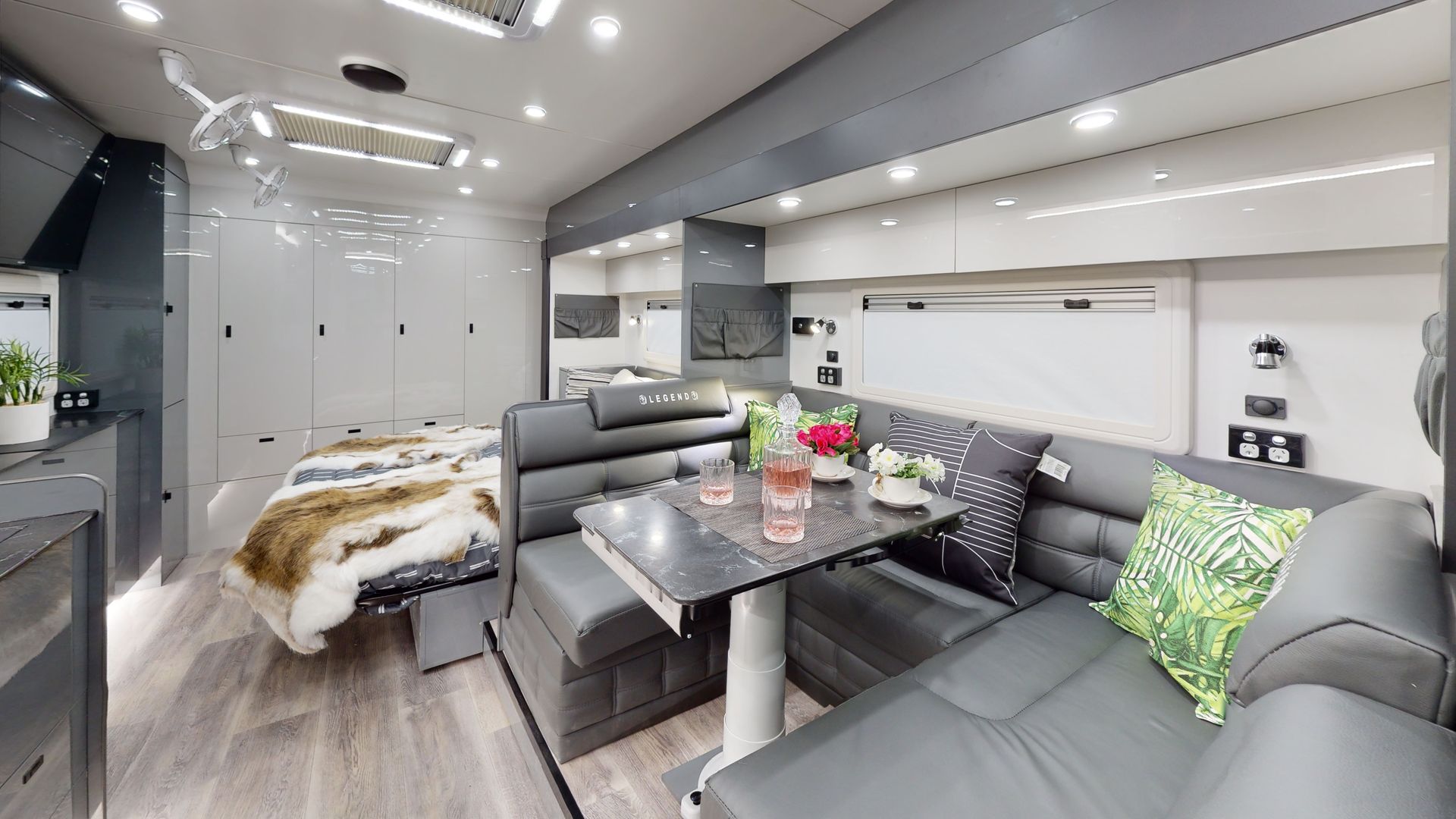

Tycoon slider internally comes with luxury leather lounge, lounges can come in many different styles depending on the layout or customer request.

The internal design of this van is all about luxury, space technology, security and many other features that will make your journey comfortable with all the luxury that you would expect from a true legend.

PLUMBING

Legend caravans has fully qualified plumbers that has over 60 years of combined caravan plumbing experience. We have the experts that you can be confident that every aspect of the plumbing inside your caravan is operating efficiently and effectively.

From more efficient gas and water plumbing which includes caravan tap ware accessories, gas and diesel heaters etc... our plumbing team is all about finding and providing solutions to all of your caravan plumbing needs.

ELECTRICAL

Electrically, this is a very well-equipped van. 200ah lithium batteries, charged by redarc battery management system with red vision and two 200w solar panels, lots of led strip lights, also there are led lights on the off-side of the caravan.

Rear and front spotlight can give you extra brightness.

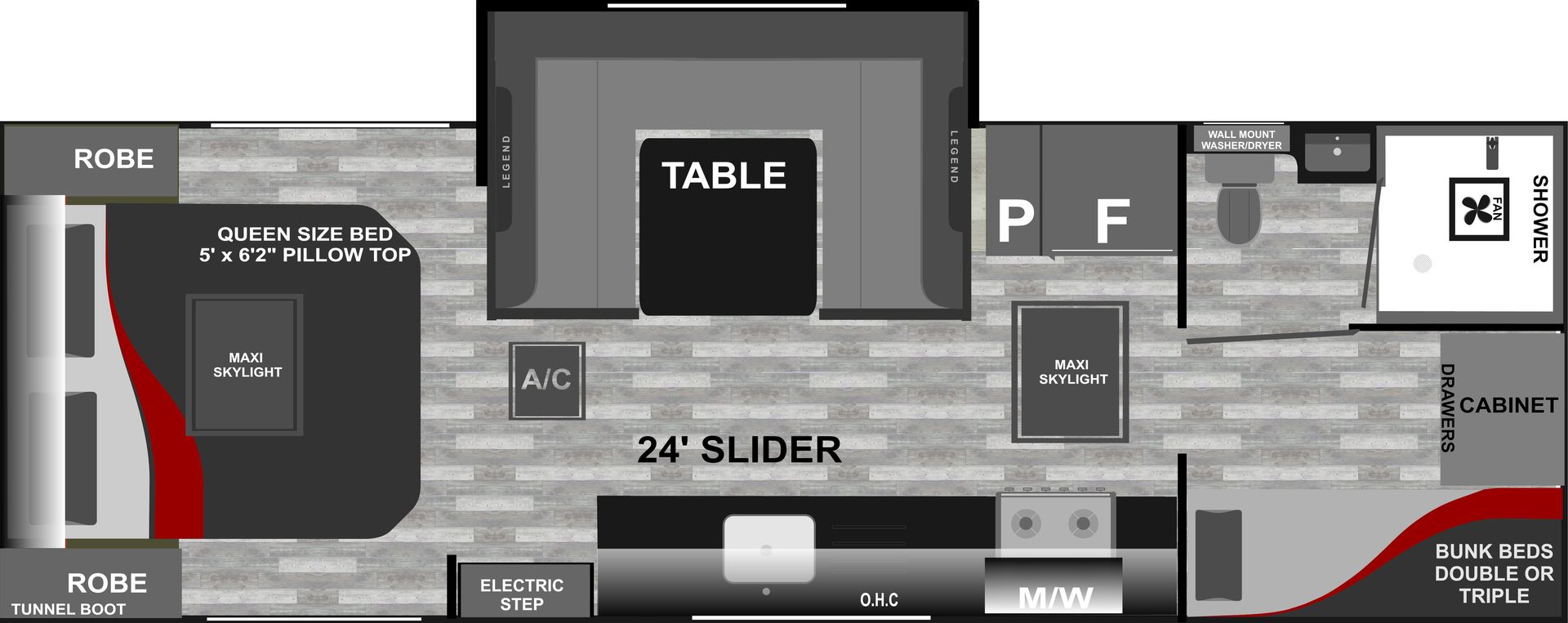

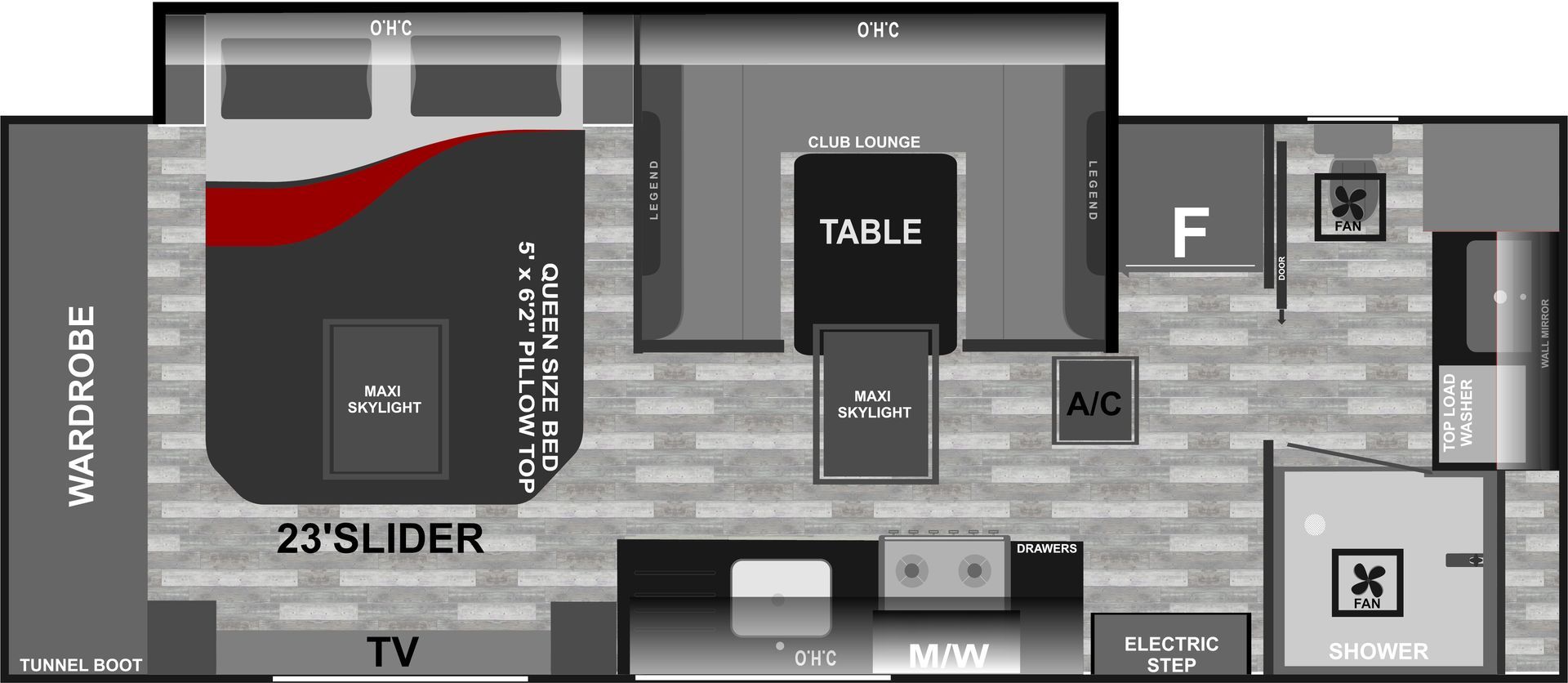

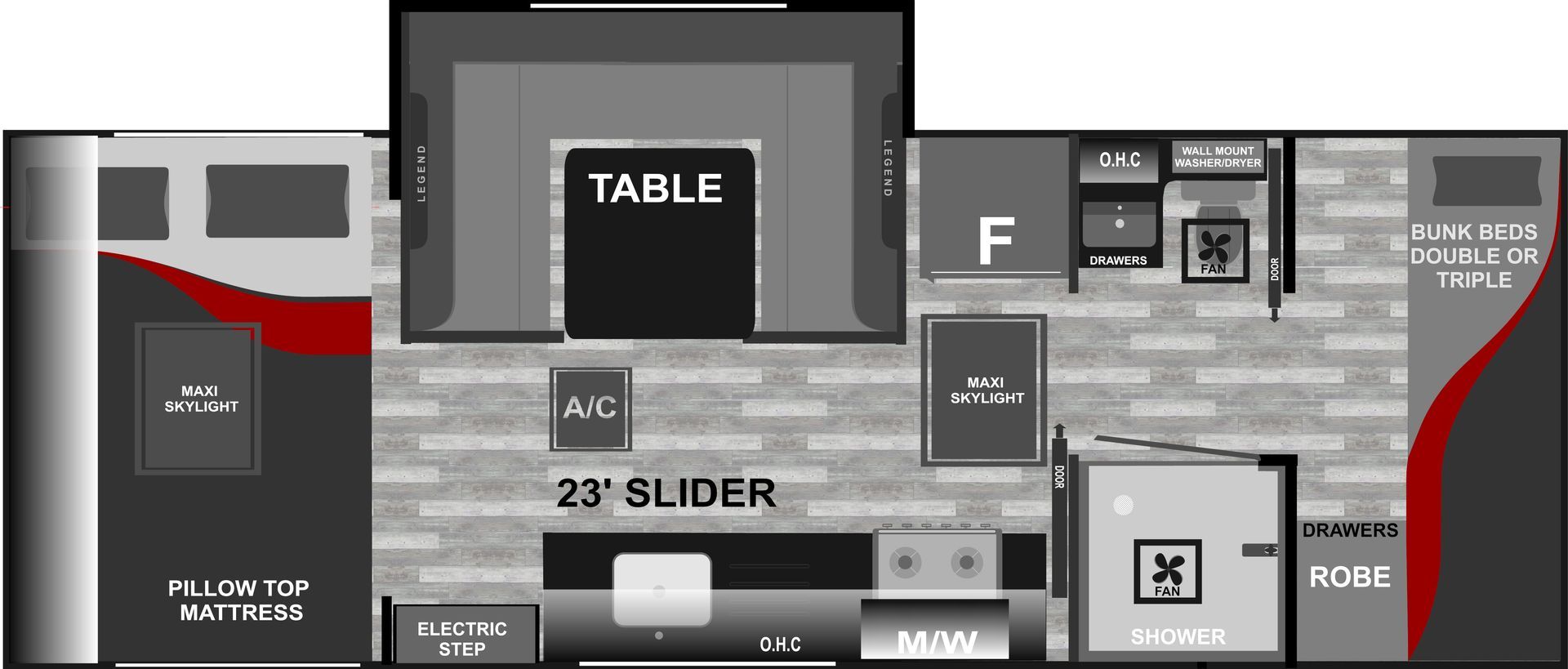

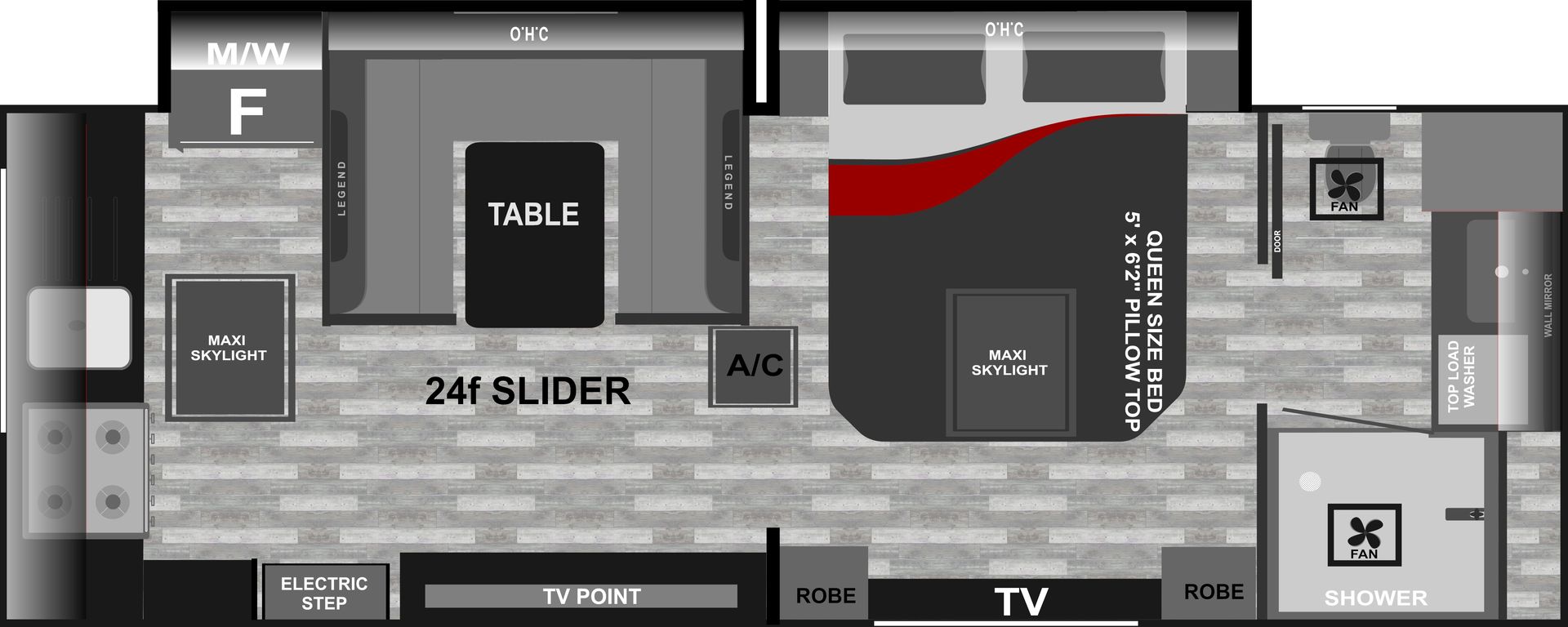

Layouts

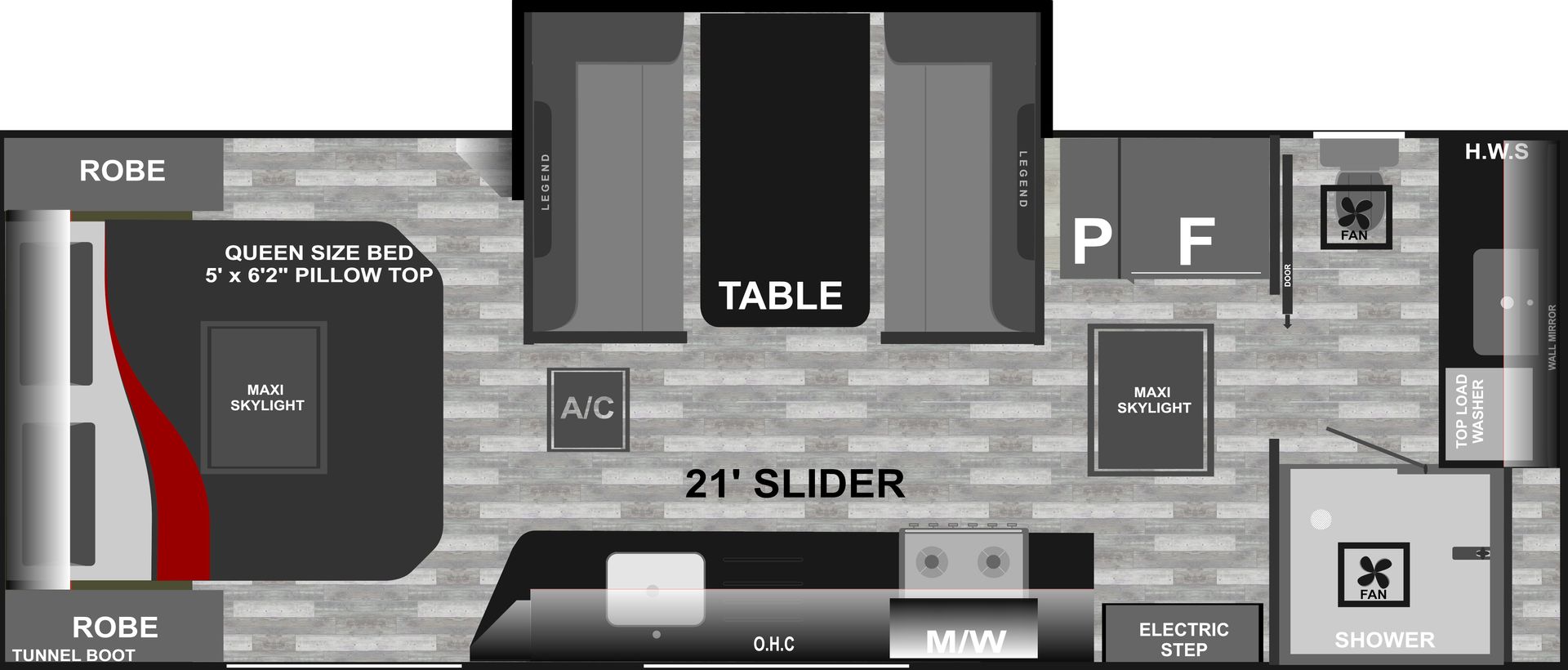

LAYOUT  NUMBER         -     21-65

BODY LENGTH               -     6400mm

BODY WIDTH                 -     2300mm

FULL WIDTH                  -      2500mm

FULL LENGTH                -      8840mm

INTERNAL HEIGHT        -     1960 - 2060mm

FULL HEIGHT                 -      2150 - 2250mm

Contact Us

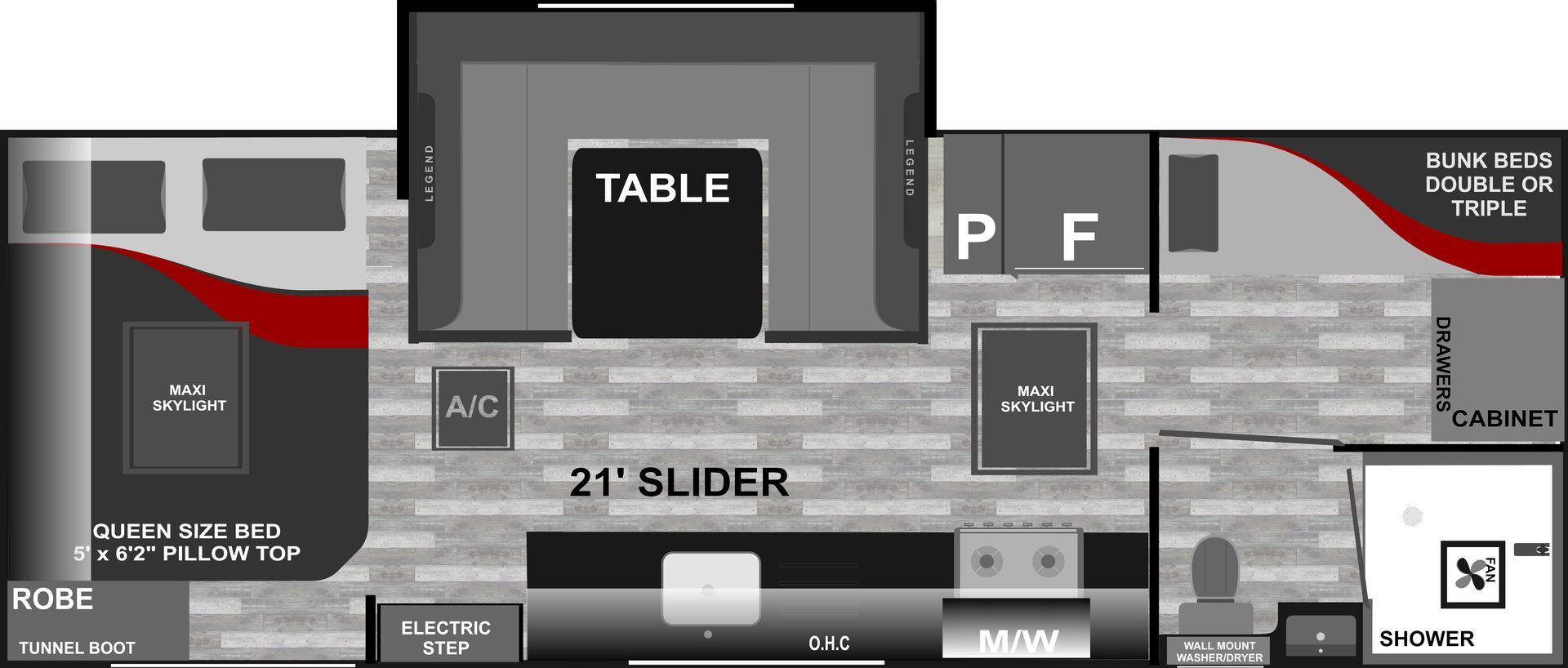

LAYOUT  NUMBER         -     21-66

BODY LENGTH               -     7010mm

BODY WIDTH                 -     2300mm

FULL WIDTH                  -      2500mm

FULL LENGTH               -      9450mm

INTERNAL HEIGHT        -     1960 - 2060mm

FULL HEIGHT                 -      2150 - 2250mm

CLICK HERE TO VIEW 3D VIRTUAL TOUR

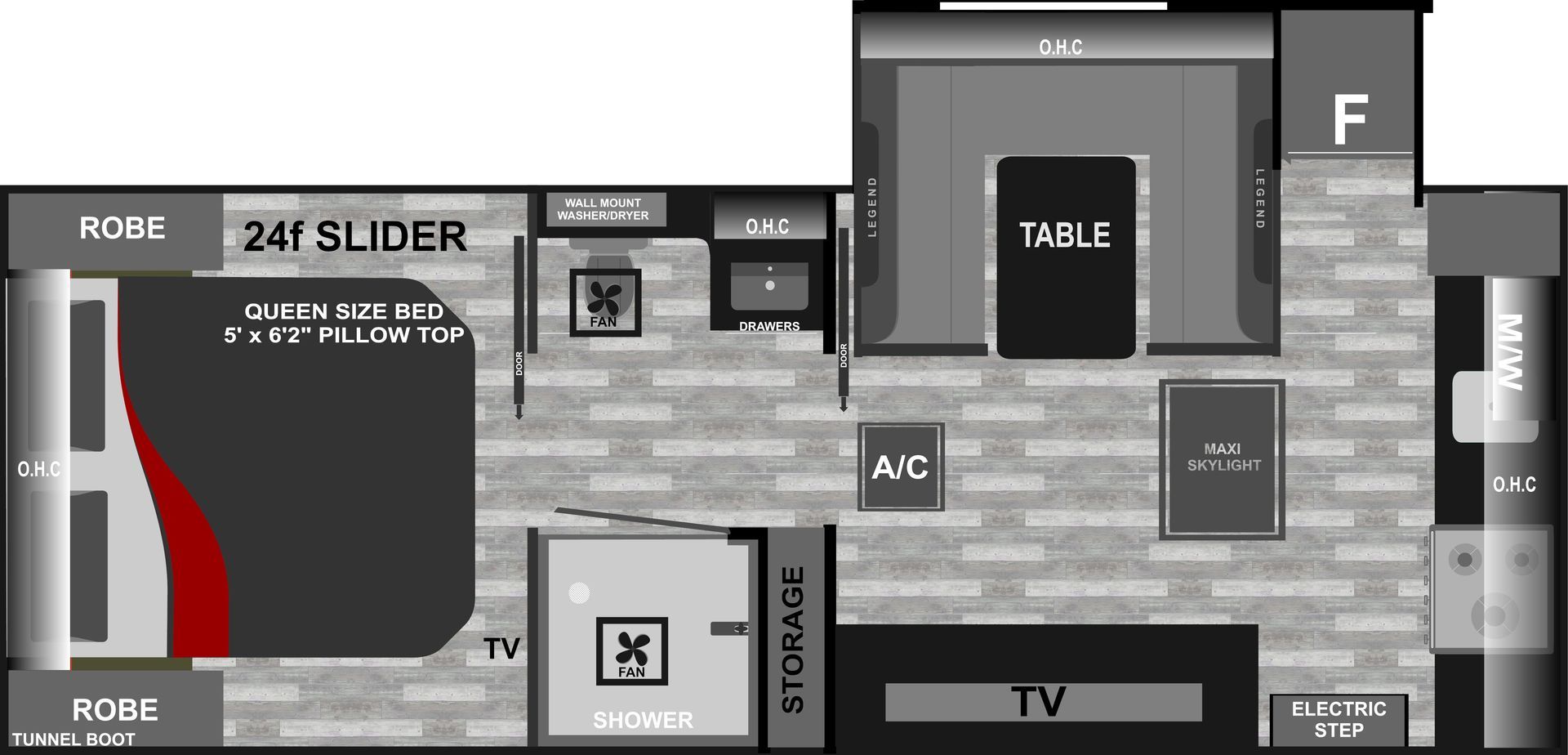

LAYOUT  NUMBER         -     21-67

BODY LENGTH               -     7320mm

BODY WIDTH                 -     2300mm

FULL WIDTH                  -      2500mm

FULL LENGTH                -      9755mm

INTERNAL HEIGHT        -     1960 - 2060mm

FULL HEIGHT                 -      2150 - 2250mm

CLICK HERE TO VIEW 3D VIRTUAL TOUR

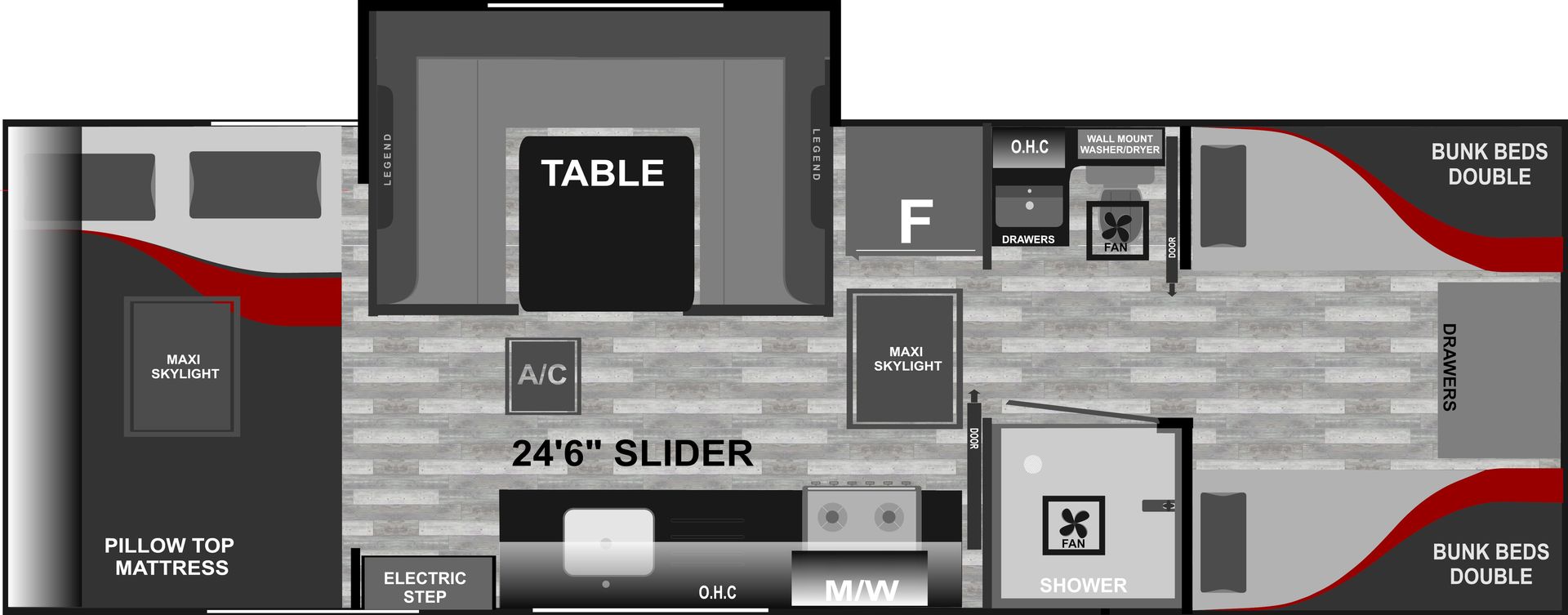

LAYOUT  NUMBER         -     21-68

BODY LENGTH               -     6400mm

BODY WIDTH                 -     2300mm

FULL WIDTH                  -      2500mm

FULL LENGTH                -      8840mm

INTERNAL HEIGHT        -     1960 - 2060mm

FULL HEIGHT                 -      2150 - 2250mm

Contact Us


Contact Us


Contact Us


Contact US


Contact Us

Technical Specifications

  • CruseMaster XT Coil
  • 12” Electric Brakes
  • 4” Chassis Australian Steel
  • 2” Raiser Australian Steel
  • 6” Heavy Duty A-FRAME
  • A-Frame Extention
  • Light Weight Chassis
  • 265/75/16 Allterrain
  • Wheels/Tyers 16”
  • Powder Coated Chassis
  • 3 Arm Legend B/Bar
  • Jerry Can Holders
  • 1 x 16” Spare Wheel
  • Do35 Off-Road Coupling
  • One Piece Honeycomb Floor
  • Large Toolbox with Slides
  • Underslung Coupling
  • 2 Gas Bottle Holders
  • 4.5t Rated Chains
  • Jacking Points

Contact Us

  • Aluminium Frame construction
  • Aluminium Composite Walls
  • Checker or Dimple Plate
  • Checker or Dimple Front/Back
  • One Piece Fiberglass Insulated, Water and Hail Resistant Roof
  • One Piece Honeycomb Floor
  • Security Main Door Entry
  • Aerodynamic Front
  • Large Skylight with LED
  • Insulated Walls and Roof
  • Double Insulation on Roof
  • Lockable Access Hatches
  • Caravan Mudflaps
  • Stone Guard Protection
  • Dropdown Caravan Jacks
  • Dropdown Picnic Table
  • Electric Awning with LED
  • Awning on Slideout Room

Contact Us

  • Luxury 100% Leather Lounge
  • Club Lounge with Headrests
  • Telescopic + Turn Table leg
  • Solid Surface Water & Heat Resistant Benchtops
  • Lift-Up Bedframe on Struts
  • Innerspring Pillow Top     Mattress
  • Acrylic Splash Back
  • Heavy Duty Vinyl Floor
  • Fire Extinguisher
  • Smoke Detector
  • Soft Close Lockable Premium Metal sided Drawers
  • Premium Spring Assisted Overhead Cabinets
  • Soft Close Hinges throughout
  • Push Handles with Locks

Contact Us

  • Gas Electric Hot Water
  • External Shower Hot Cold
  • Gas Bayonet Connection
  • Tap on A - Frame
  • 2 x 9kg Gas Bottles
  • Top Load Washing Machine
  • Cook top + Oven All Gas
  • Ceramic Bowl Cassette Toilet
  • Flick Mixer Taps Throughout
  • Large 224ltr - 2 Door Fridge
  • 2 x 95ltr Fresh Water Tanks
  • 1 x 110ltr Grey Water Tank
  • 3 Way Water Filter Tap
  • Gas Heater - Truma
  • Towel Rails in Ensuite
  • PVC Waste Pipes Throughout
  • Brass Fittings on Cold and Hot water & Water Tanks
  • Brass Quick fill Water Tanks

Contact Us

  • Fusion Colour Stereo with Fusion Soundbar Speakers
  • Double Power Points
  • Awning Amber/White Lights
  • Off-Side Amber/White Lights
  • Front and Rear Spotlights
  • Smart TV
  • Reverse Cycle Air-Con
  • Reversing Camera Pack
  • USB Points Throughout
  • LED Strip Lights
  • Smart Control Lights
  • 48v ECOFLOW System
  • 2600w Inverter
  • 2kwl Lithium 48v Battery
  • 800w Solar Power
  • Electric Awning with LED
  • Electric Step
  • Caravan Rv Wi-Fi System
