CHASSIS      -      EXTERIOR      -      CONSTRUCTION

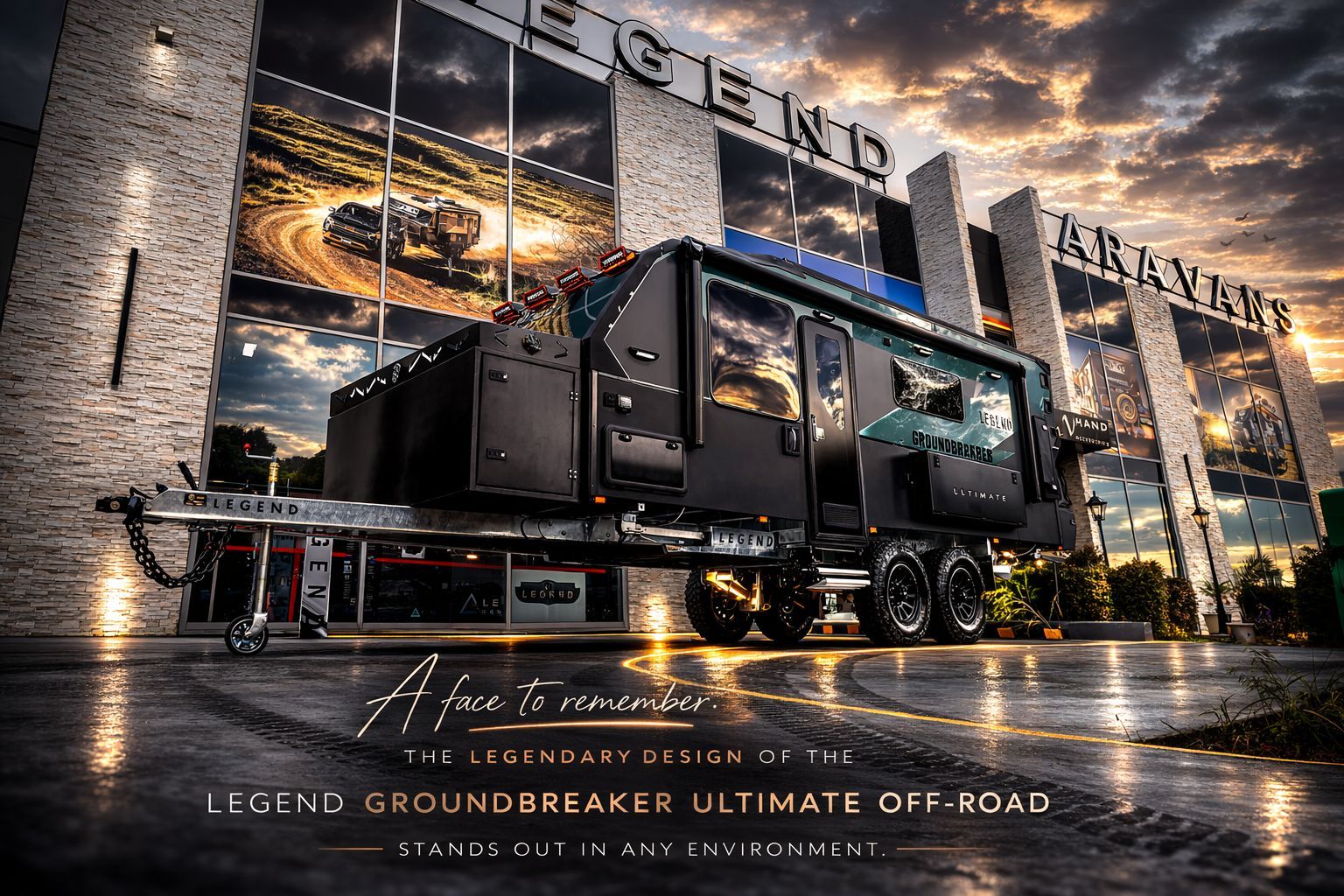

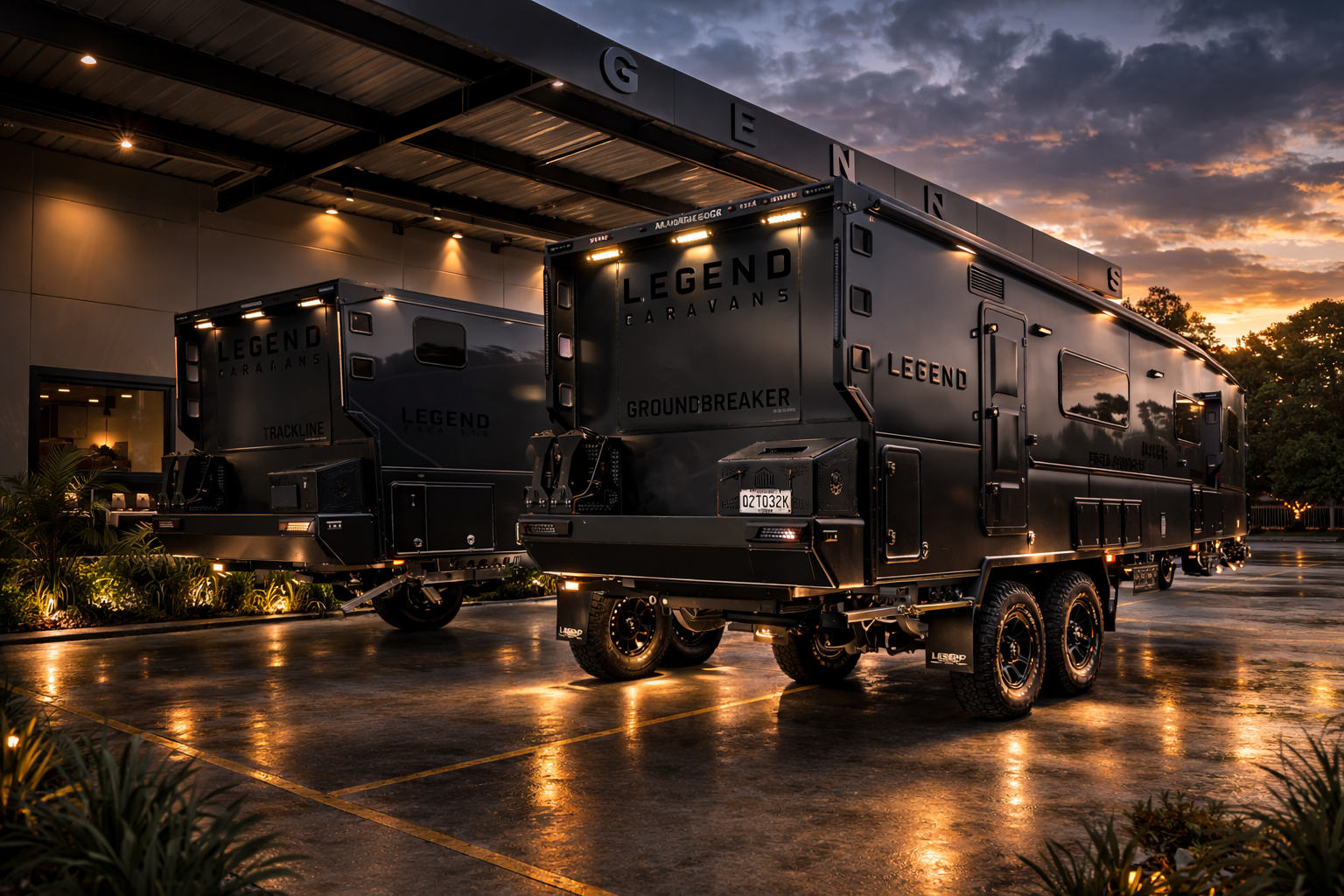

Legend Groundbreaker Ultimate Off-Road Caravan

The Legend Groundbreaker Ultimate is engineered for serious off-road performance.

At its core is a 150mm A-frame that integrates seamlessly with our over-engineered Legend-Designed S&M truss chassis,

which is Hot-Dipped galvanized for maximum durability and corrosion resistance.

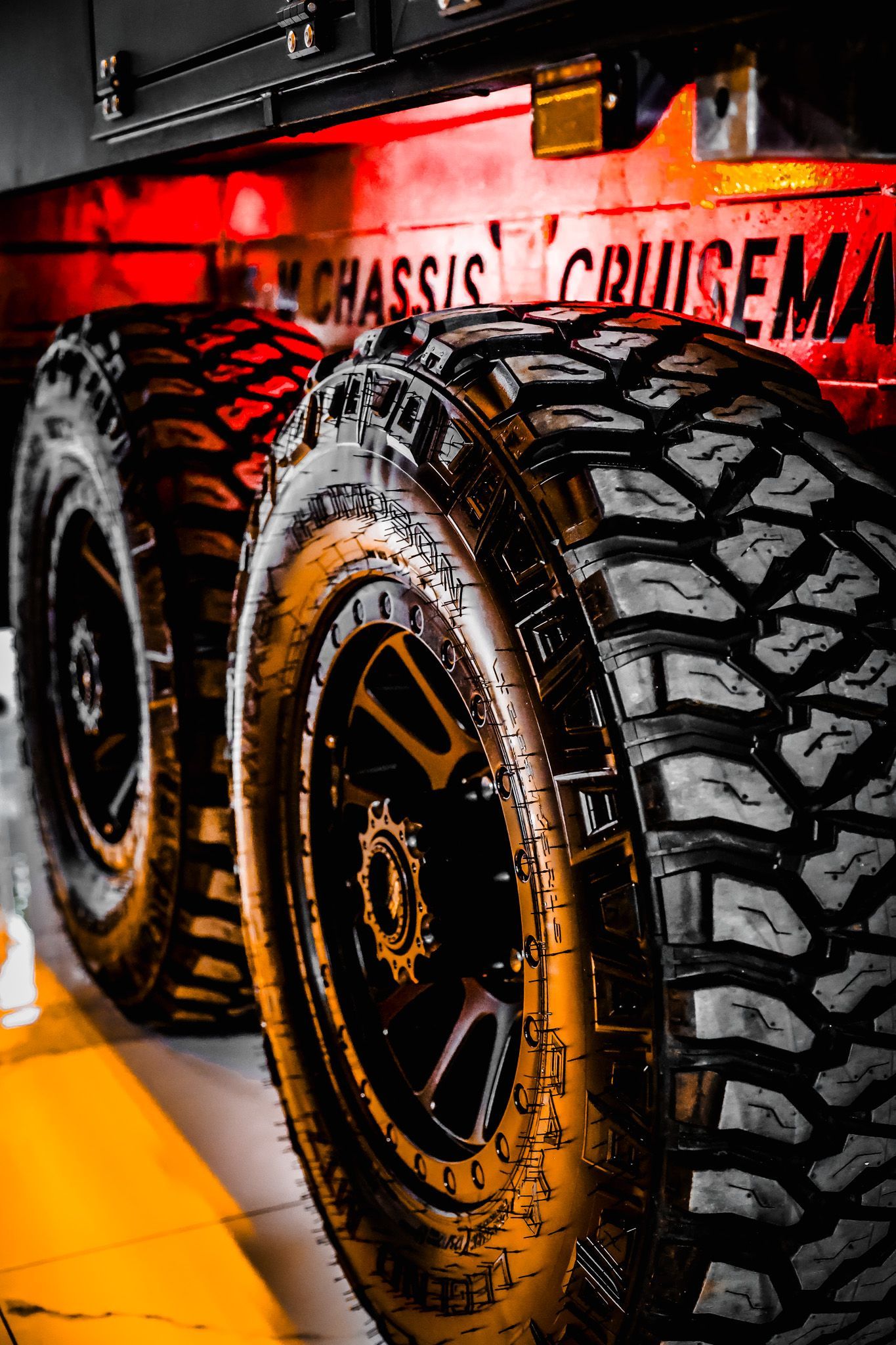

Towing is handled confidently via the Cruisemaster DO45 4500kg hitch, ensuring a secure and robust connection to your vehicle. Suspension is provided by Cruisemaster’s most advanced system — the ATX airbag unit, which features remote-controlled adjustability for optimal ride quality and terrain adaptability. Braking performance is elevated through hydraulically actuated disc brakes, offering superior stopping power in all conditions.

A Blackjack electric jack is permanently mounted on the A-frame to simplify and streamline the hitching process.

All water outlets are shielded against stone damage for increased longevity. Instead of standard PVC connectors, we’ve opted for premium all-brass fittings, demonstrating our commitment to durability and quality.

For added peace of mind, the Groundbreaker includes rated recovery points, a critical feature for off-road recovery situations.

Advanced Construction Technology

All Legend caravans, including the Groundbreaker, are built using a high-tech aluminium frame construction, assembled with the Hanrob self-piercing riveting system. This allows for controlled flexibility under extreme conditions, significantly reducing the risk of structural cracking.

The roof and wall frame components are lock-bolted together and securely attached to the chassis, forming a single cohesive and enduring structure. Unlike traditional spot welding, self-piercing rivets prevent heat distortion issues, as aluminium and its alloys melt below 800°C. These fasteners are also fully compatible with galvanized and coated surfaces, eliminating the need for re-coating or re-plating.

Lockbolts provide nearly 100% bearing area within the locking grooves, compared to just 30–35% with traditional nut-and-bolt connections, which are more susceptible to loosening under vibration.

This enhanced vibration resistance has been proven through the Junker test, which simulates the shear loading from transverse vibration. Lockbolts clearly outperform conventional fastening methods in maintaining preload and integrity.

Premium Insulation and Exterior Finish

Every Legend caravan is built with a single-piece insulated, rot-free lightweight floor and a one-piece fiberglass sandwich roof panel. This roof construction is not only rot-resistant and hail-resistant but also delivers exceptional structural strength, thermal insulation, and acoustic protection.

Exterior cladding consists of composite panels made of aluminium sheets over a polyethylene core. Wall cavities are filled with AIR-CELL Insuliner, a closed-cell, fire-resistant insulation featuring reflective foil for optimal thermal regulation. The inclusion of air pockets within the wall structure enhances the caravan’s R-rating, ensuring comfort in all climates.

INTERNAL      -      PLUMBING      -      ELECTRICAL

Premium Craftsmanship Meets Innovation

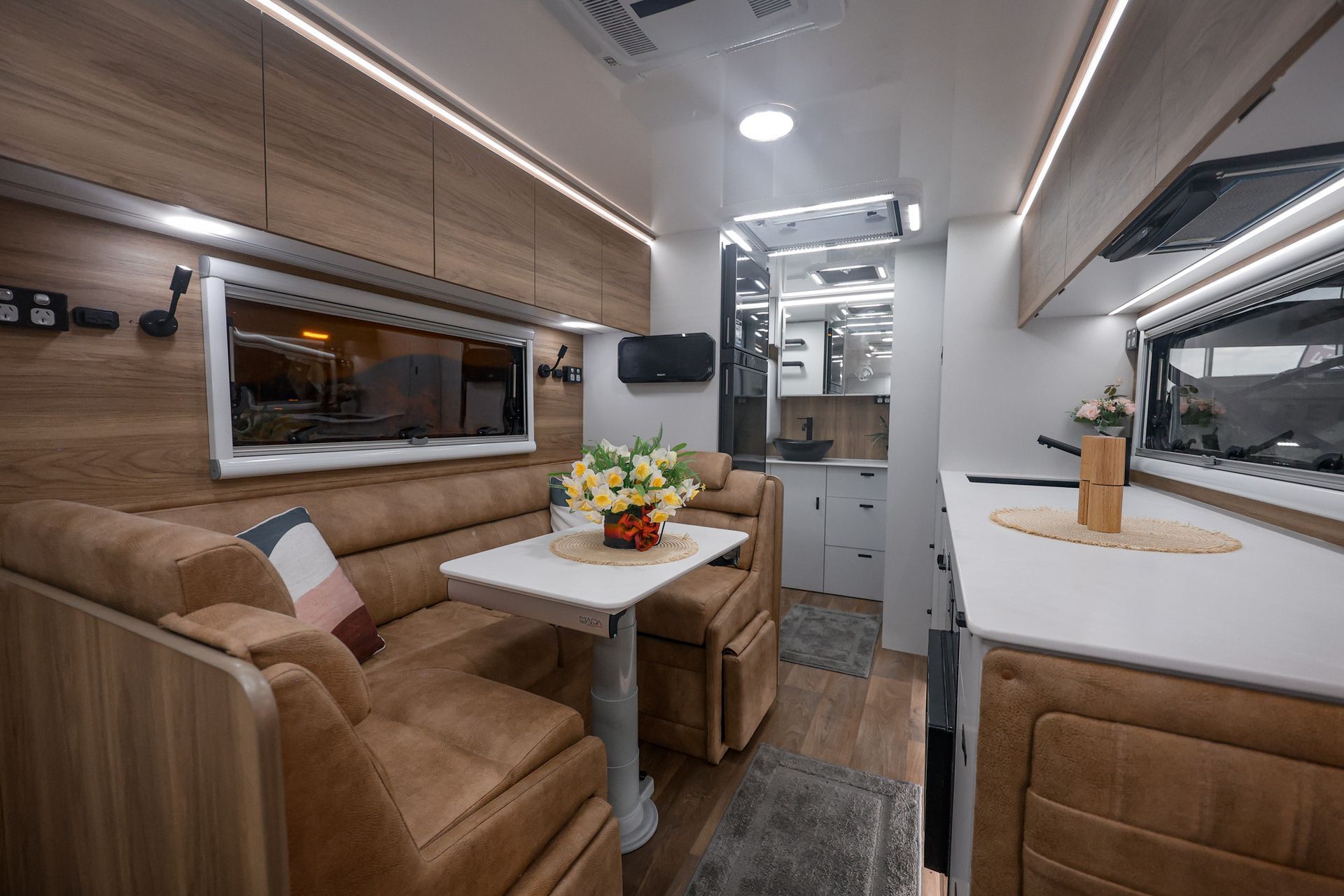

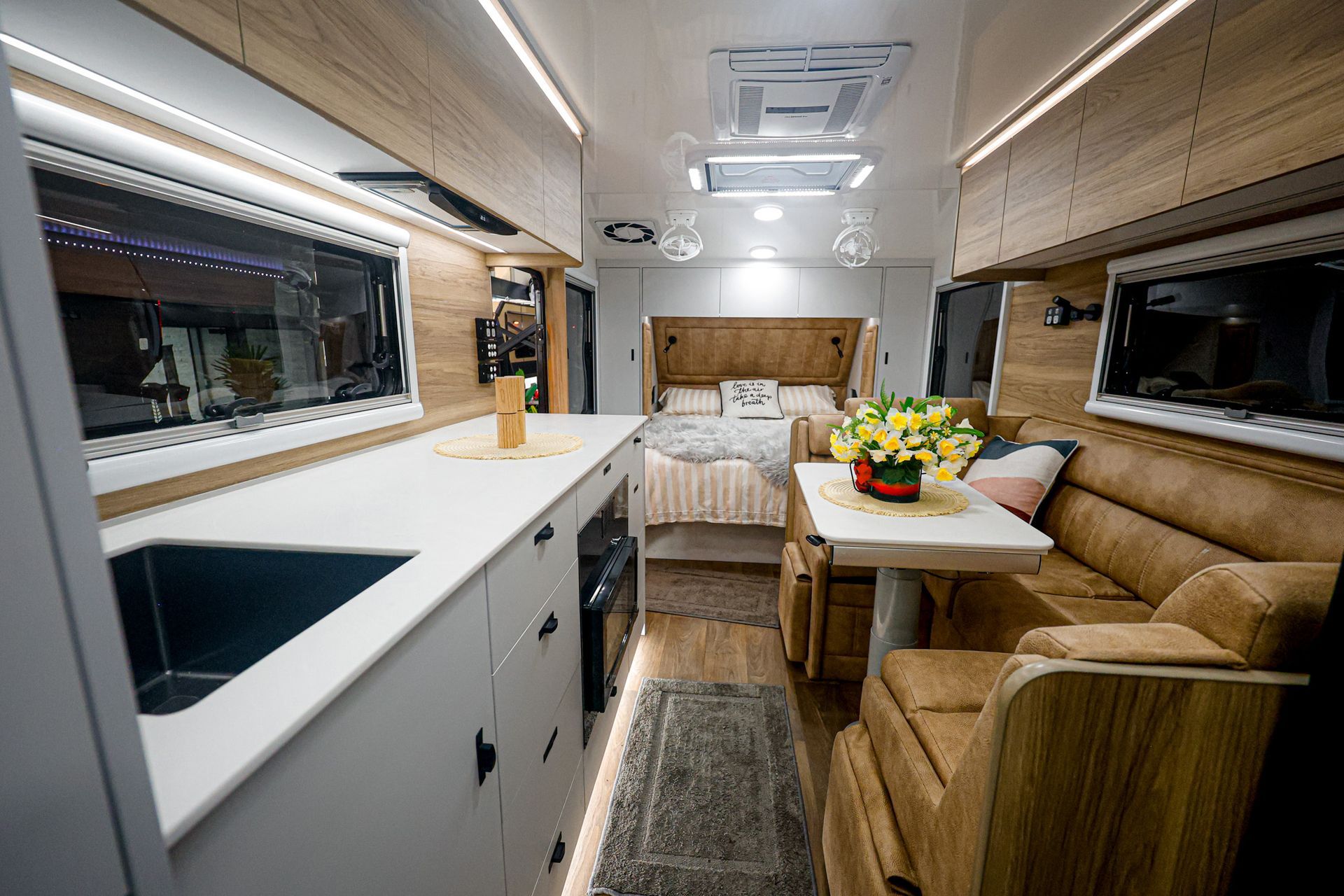

Step into an environment where luxury meets function. Meticulously crafted joinery paired with rich leather upholstery creates an upmarket, sophisticated ambience. The high 1.96m ceiling enhances the sense of space, contributing to an inviting and open interior atmosphere.

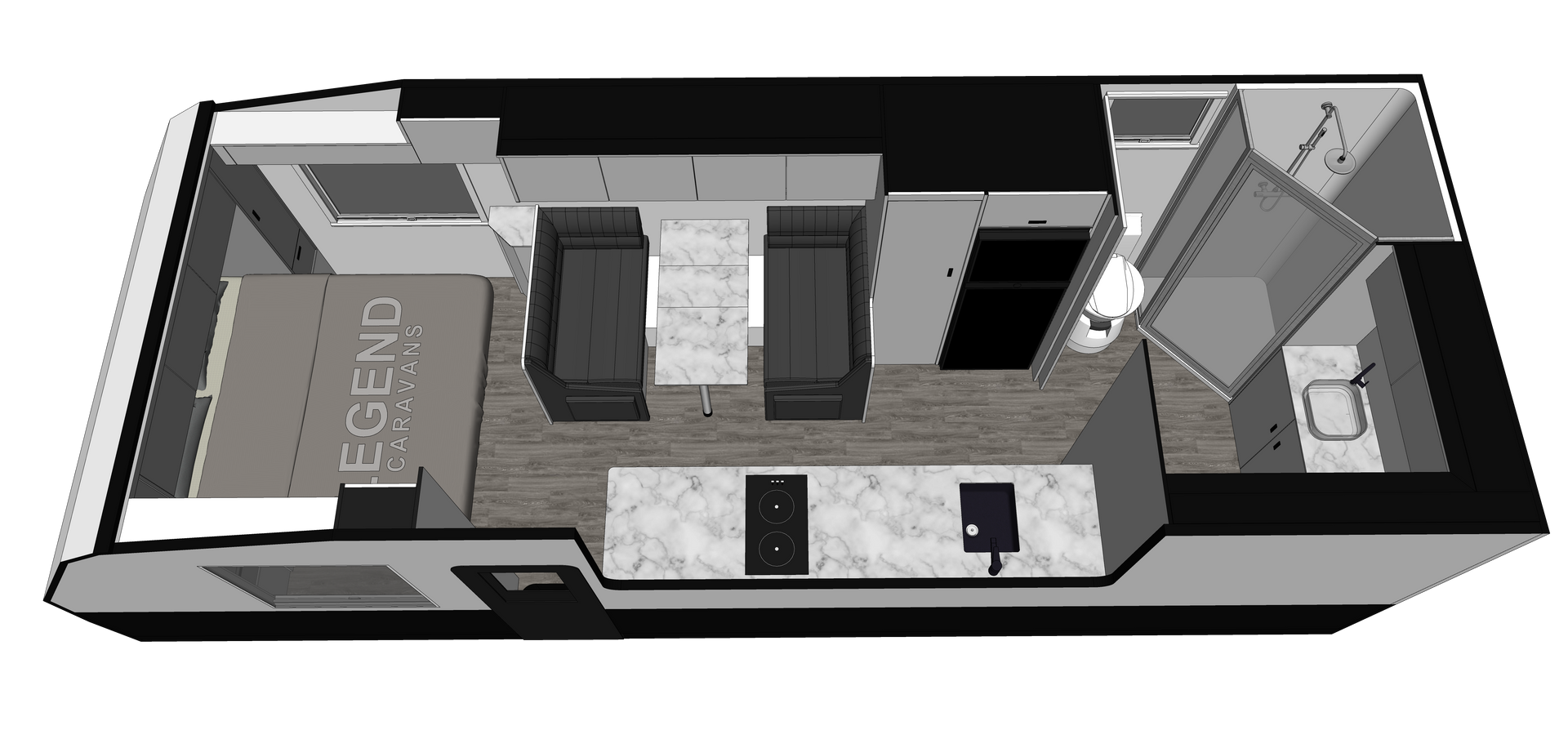

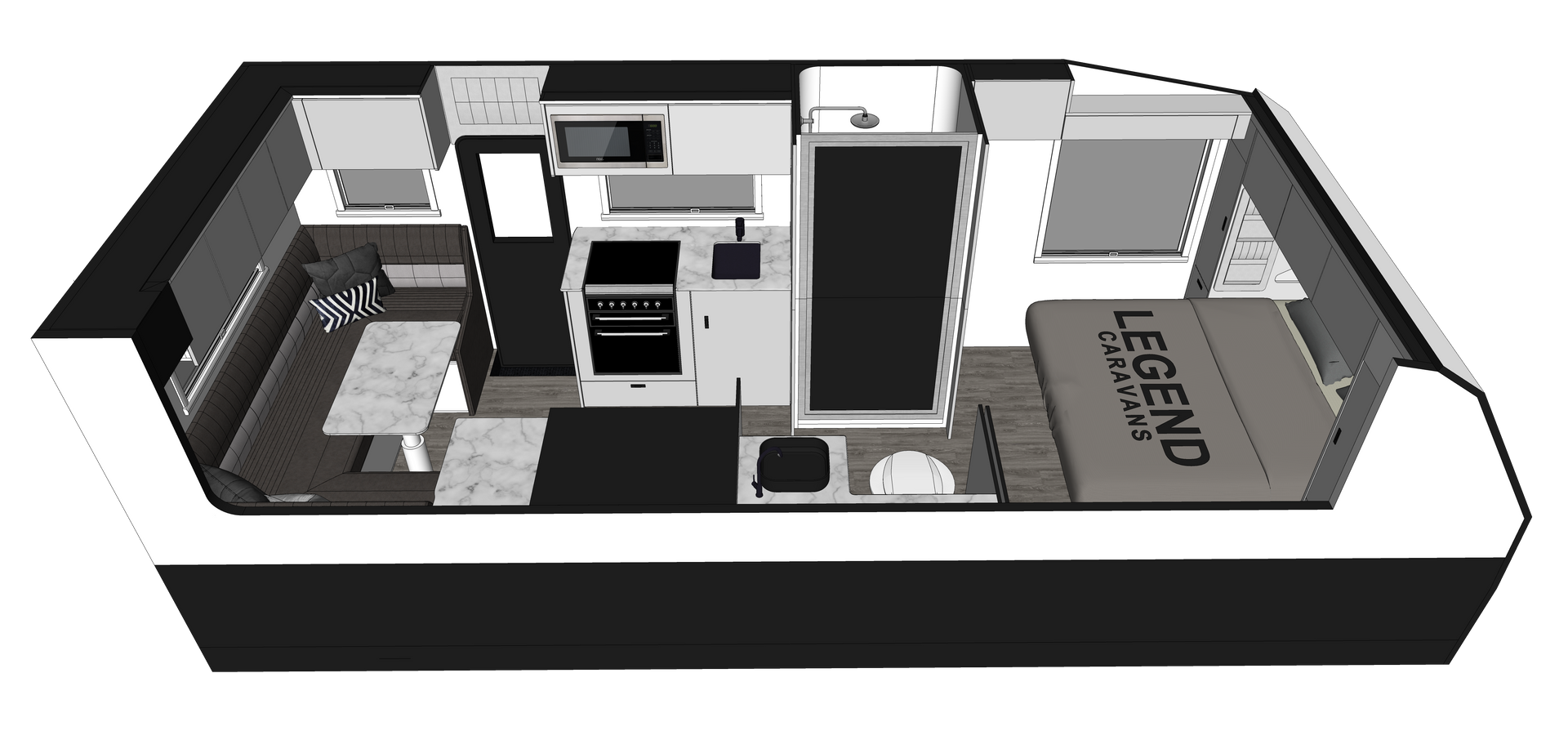

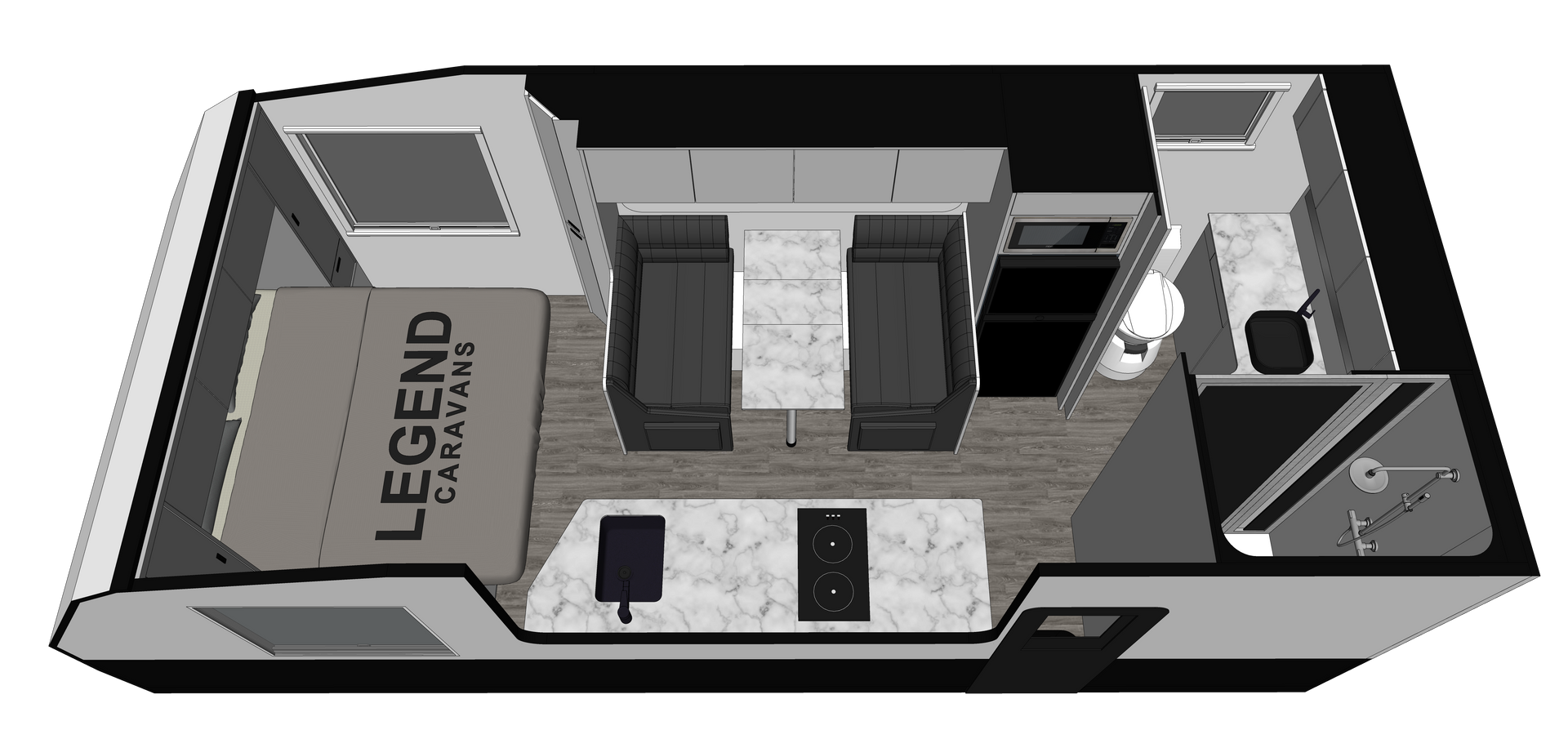

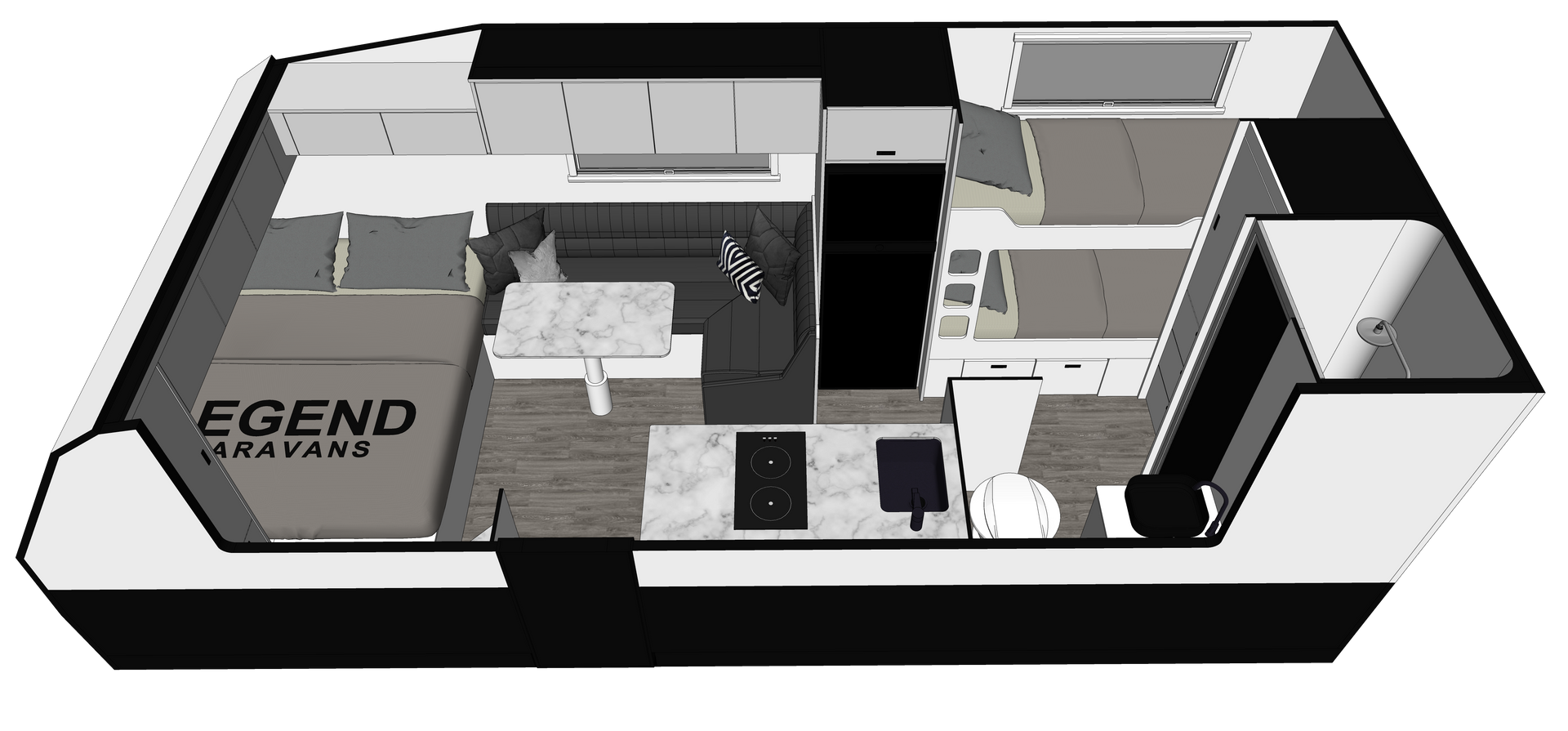

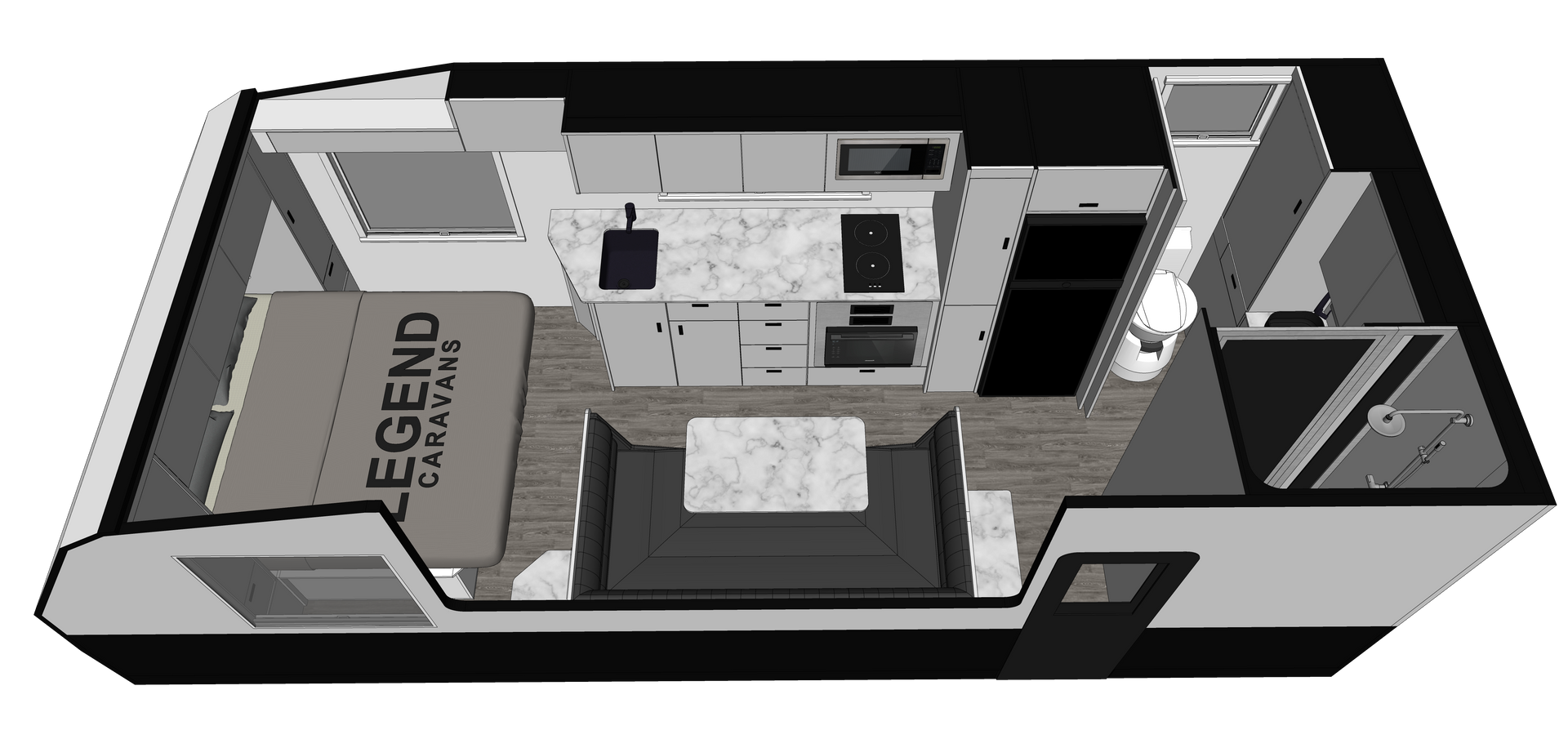

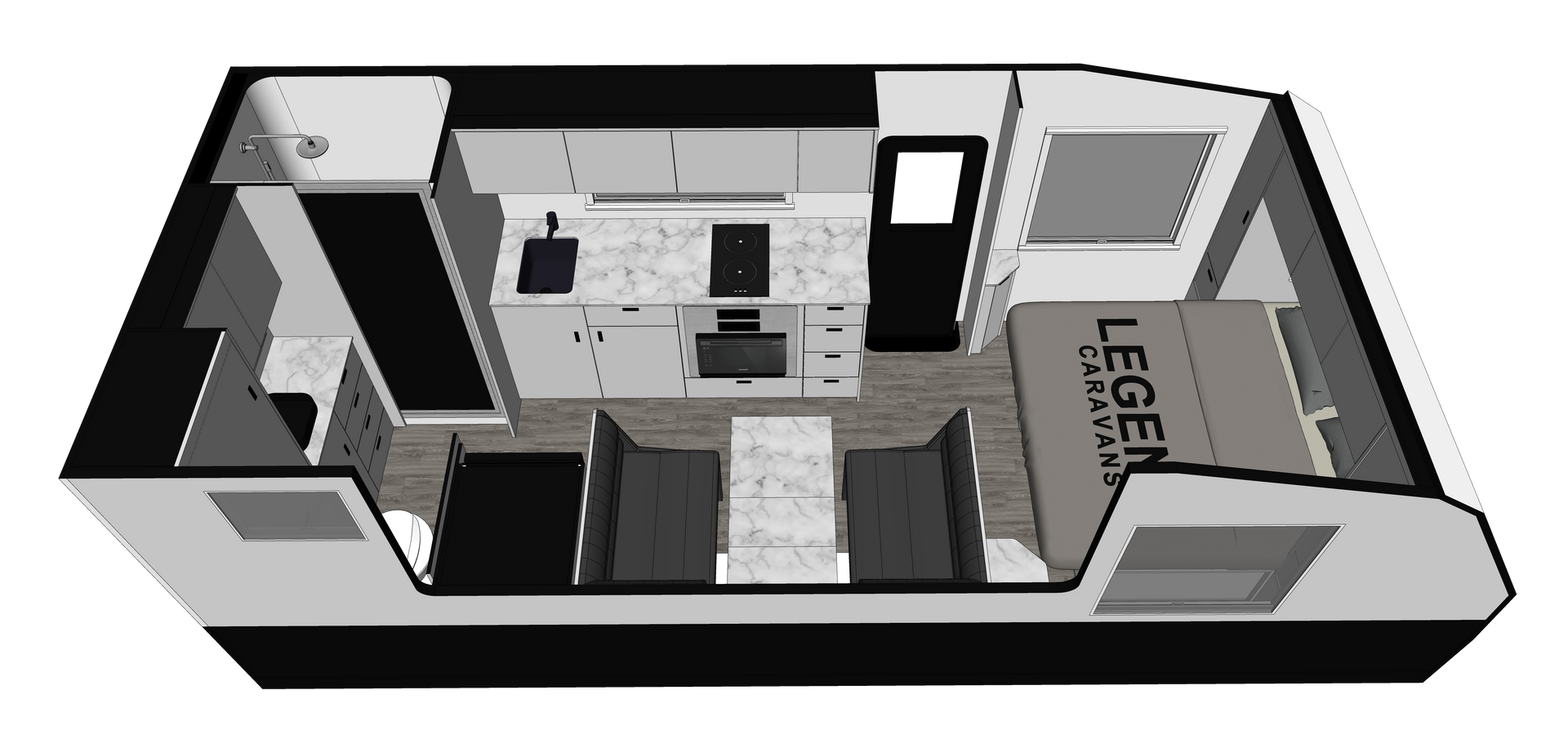

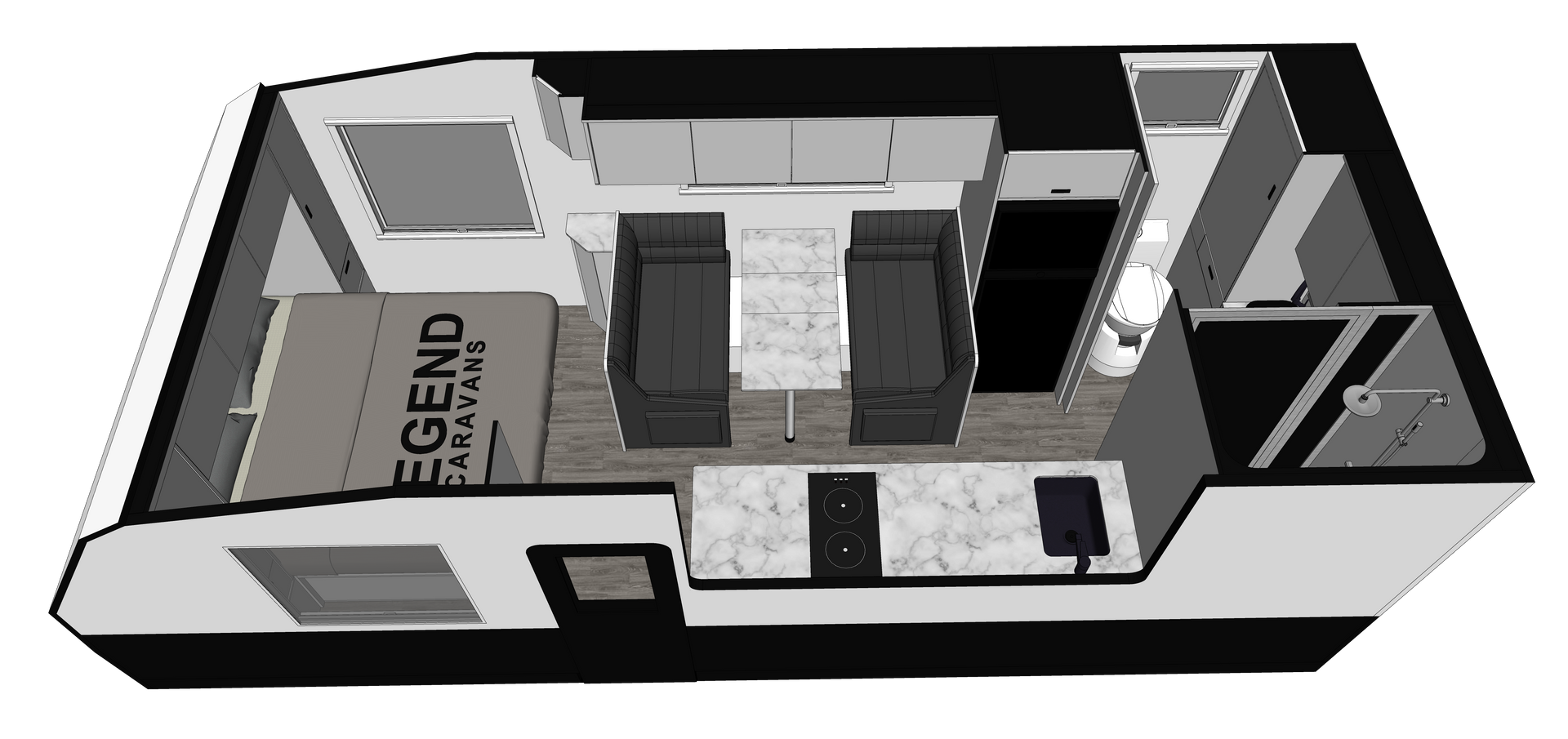

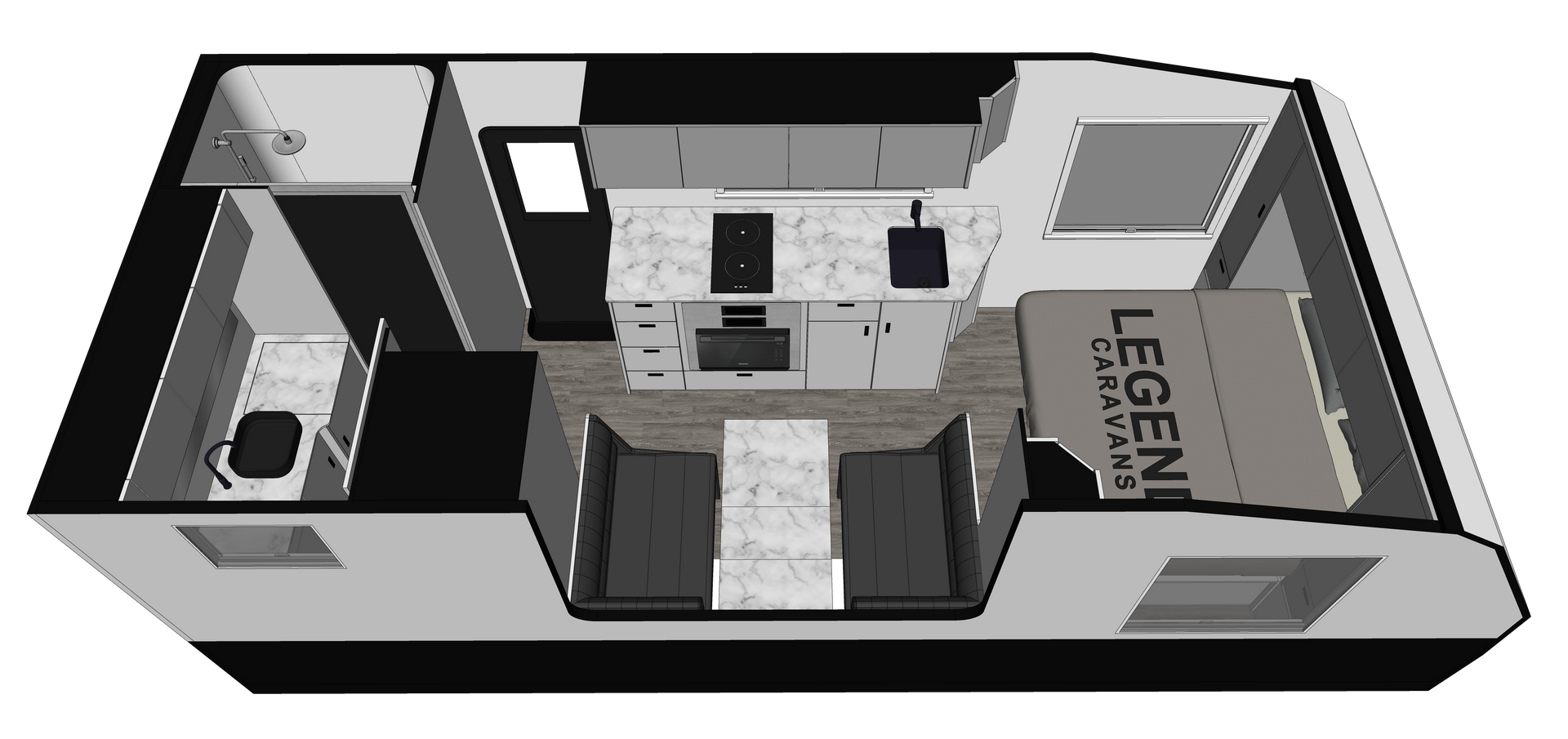

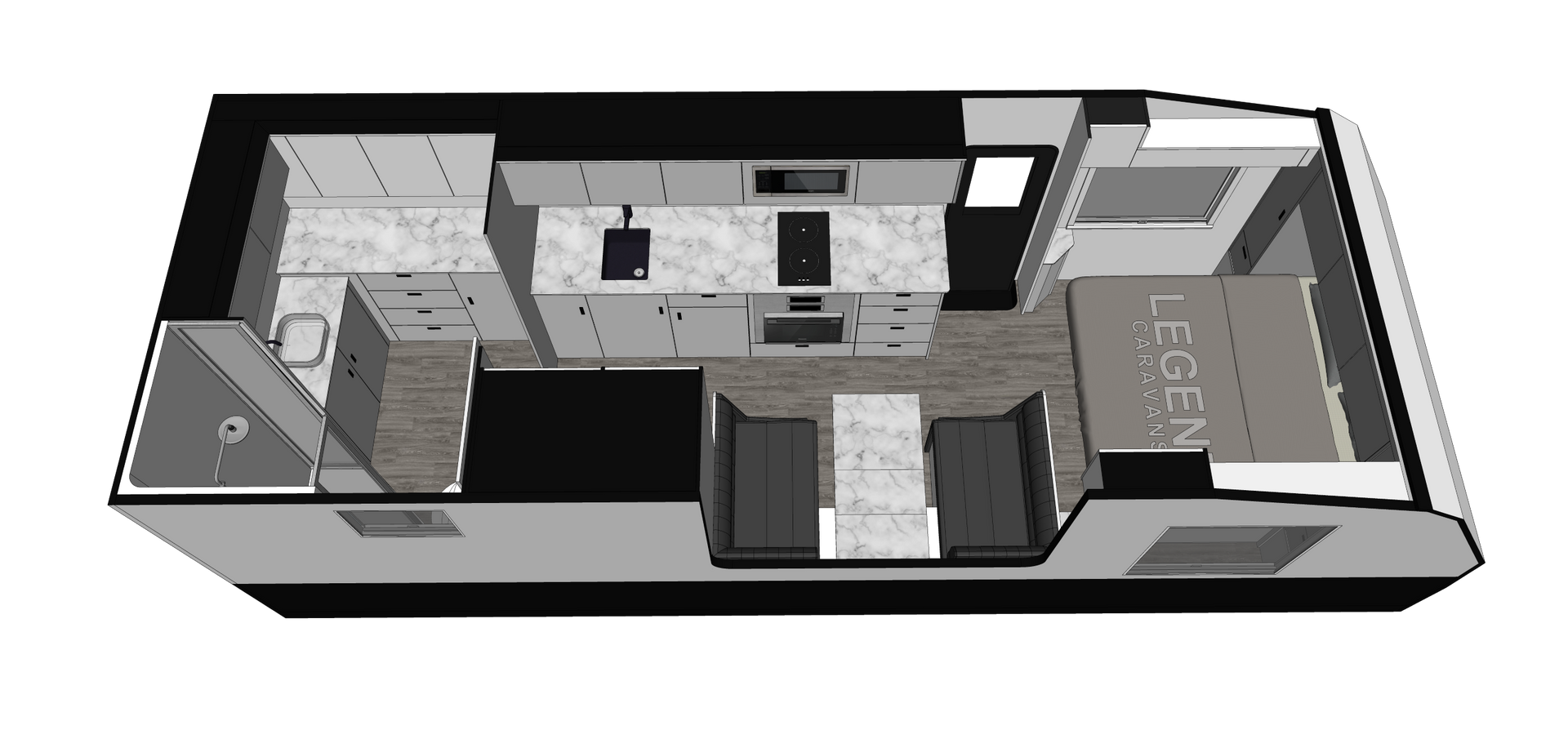

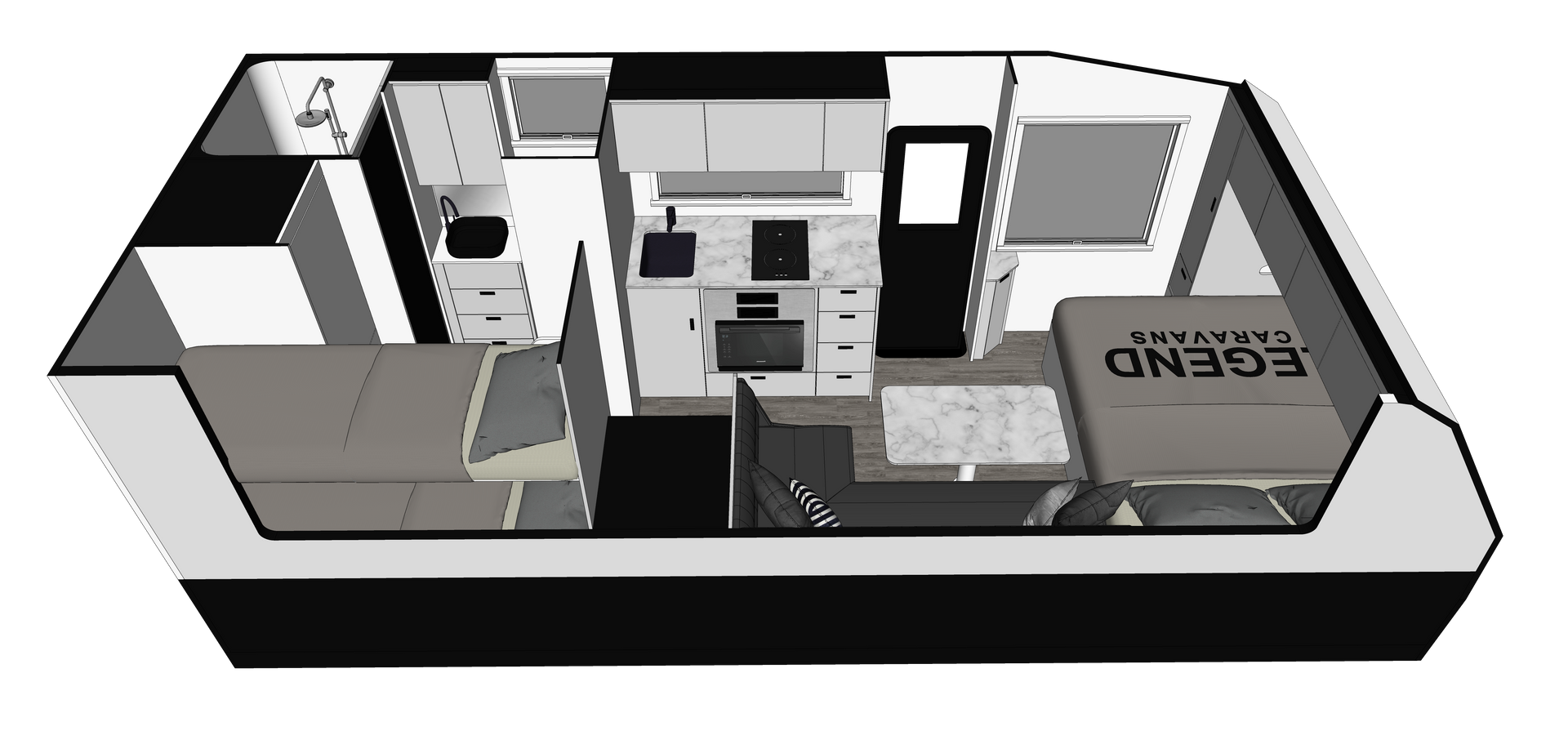

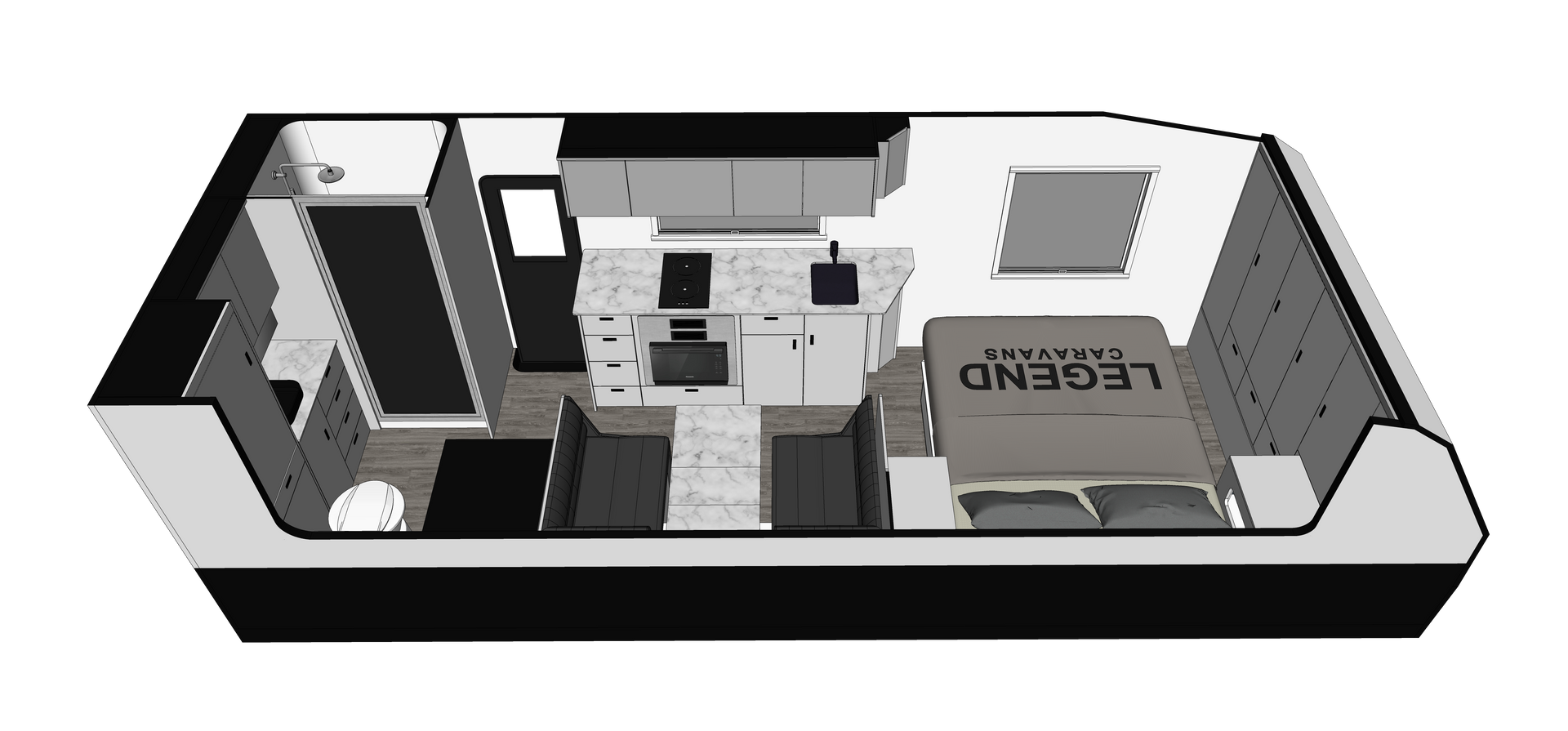

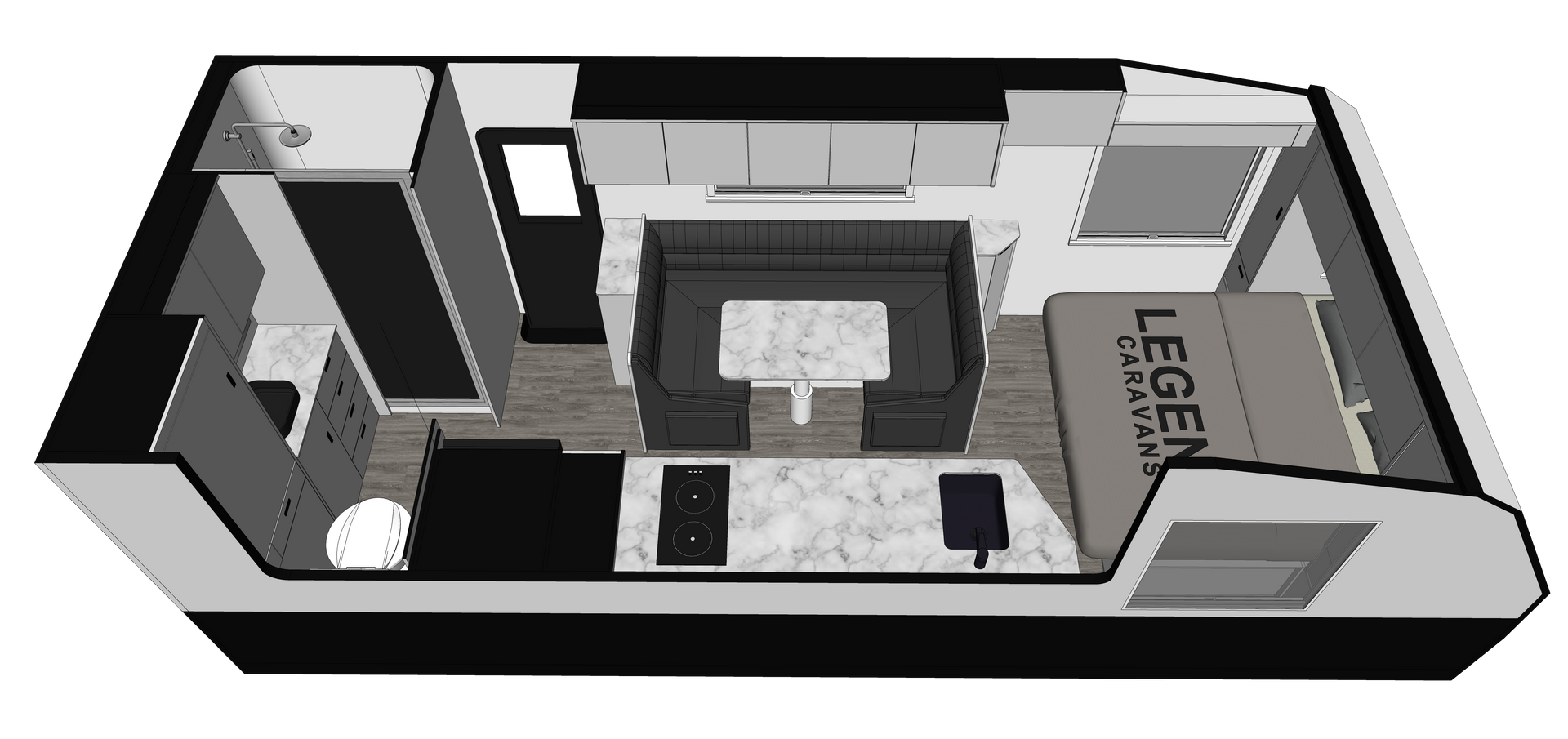

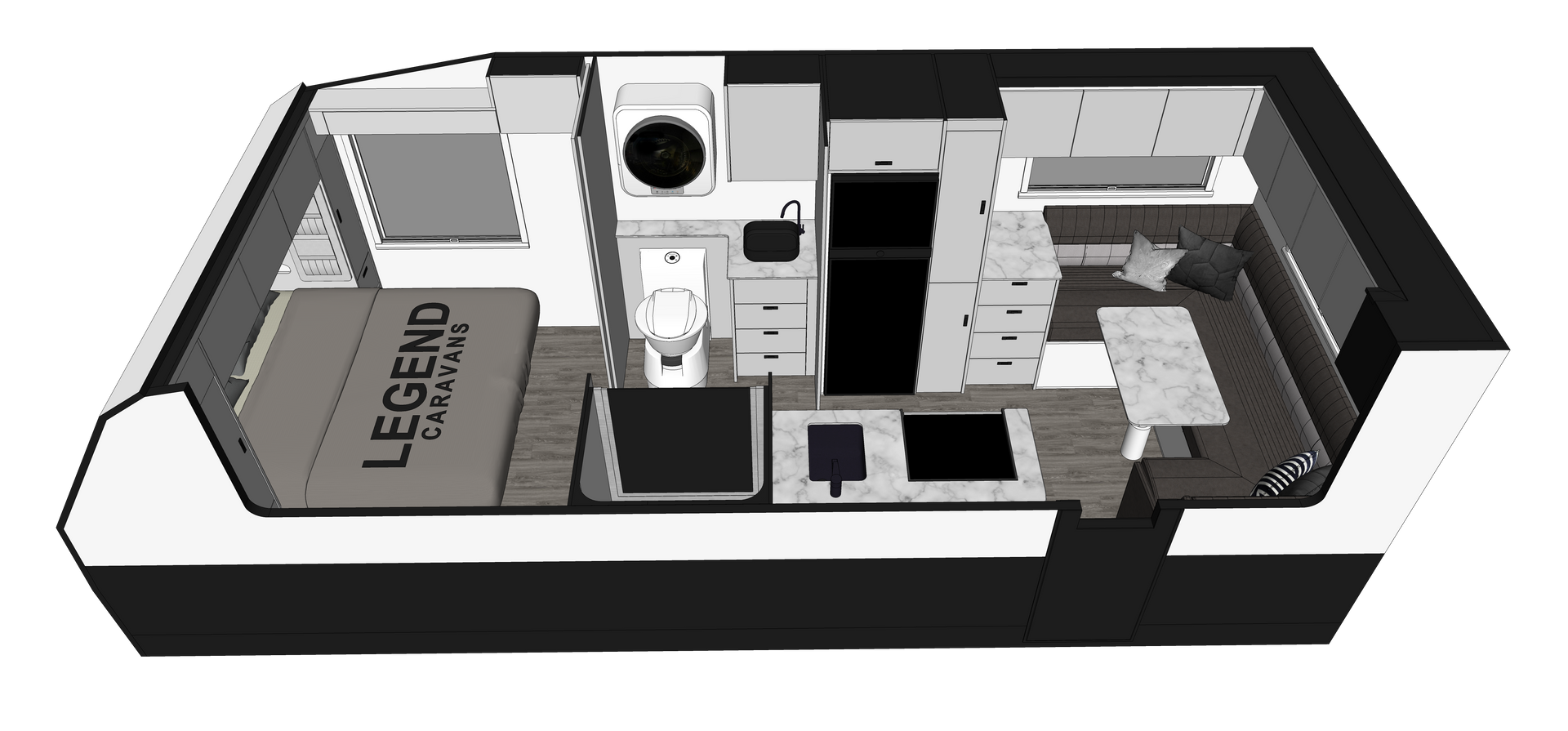

Our flat floor design eliminates wheel arch intrusion, allowing for a more versatile and efficient layout. This model features high-quality drawers and a specially engineered premium lift-up stay system for the upper cabinets, maximising both accessibility and durability.

Intelligent Storage Solutions

The customisable Legend Drawer System reflects the latest in contemporary living and interior design trends. With side panels that are straight on both the inside and outside and measuring a sleek 12.8 mm, these drawers offer more usable space and integrate seamlessly with any furniture style.

Built using advanced cabinet technology, our drawer system features a SPECIAL cabinet profile with minimal opening force, synchronised feather-light glide, and compatibility with three distinct motion technologies. The integrated soft-close function adjusts automatically depending on the chosen system.

Premium Benchtops – Solid Surface Performance

All Legend Caravans come standard with our Solid Surface Premium Acrylic Benchtops—crafted from high-performance, 100% acrylic material that meets the highest standards for durability and hygiene.

Key features include:

• Hygienic & Non-Porous: Inhibits the growth of mould, mildew, and bacteria. NSF certified and food-safe.
• Seamless Joints: Inconspicuous joins with no crevices, ensuring a cleaner and more hygienic surface.
• Low Maintenance: Easy to clean and requires no sealing or special products.
• Versatile & Thermoformable: Can be moulded, shaped, and routed to suit both horizontal and vertical surfaces.

Expert Plumbing Systems

At Legend Caravans, we employ fully qualified plumbers with over 60 years of combined experience in the caravan industry. Our systems are built using the latest technologies and brass fittings—making us the first in the industry to include brass in both hot and cold water connections as standard.

Each caravan with gas fittings is fully tested and comes with a certified gas compliance certificate. Whether you're outfitting your caravan with an outdoor kitchen or need custom water solutions, our plumbing team is committed to providing reliable, long-lasting systems that work seamlessly.

Advanced Electrical Systems – Ready for Off-Grid Adventures

The Legend Groundbreaker Ultimate Off-Road is powered by a cutting-edge electrical setup. Standard features include:

• 48V Lithium Power: Equipped with a 15kWh battery pack (3 x 5kWh units) for extended off-grid performance.
• Victron 48V – 5000W Inverter with 48V Solar Regulator (larger vans include a secondary regulator for maximum efficiency).
• High-Power DC-DC Charger: Provides up to 120 amps of input to quickly recharge your batteries while driving.
• Solar Efficiency: Premium 200W, 48V solar panels with scalable installation. For instance, our 21’6” model features 7 x 200W panels—customisable to your layout and energy requirements.

We offer a range of industry-leading electrical systems to match your specific travel needs. Choose from:

• Victron Energy Systems
• EcoFlow Systems
• RedArc Systems
• Enerdrive Systems

All systems are expertly installed and thoroughly tested to ensure reliability, safety, and long-lasting performance in even the most demanding environments.
