CHASSIS - EXTERIOR - CONSTRUCTION

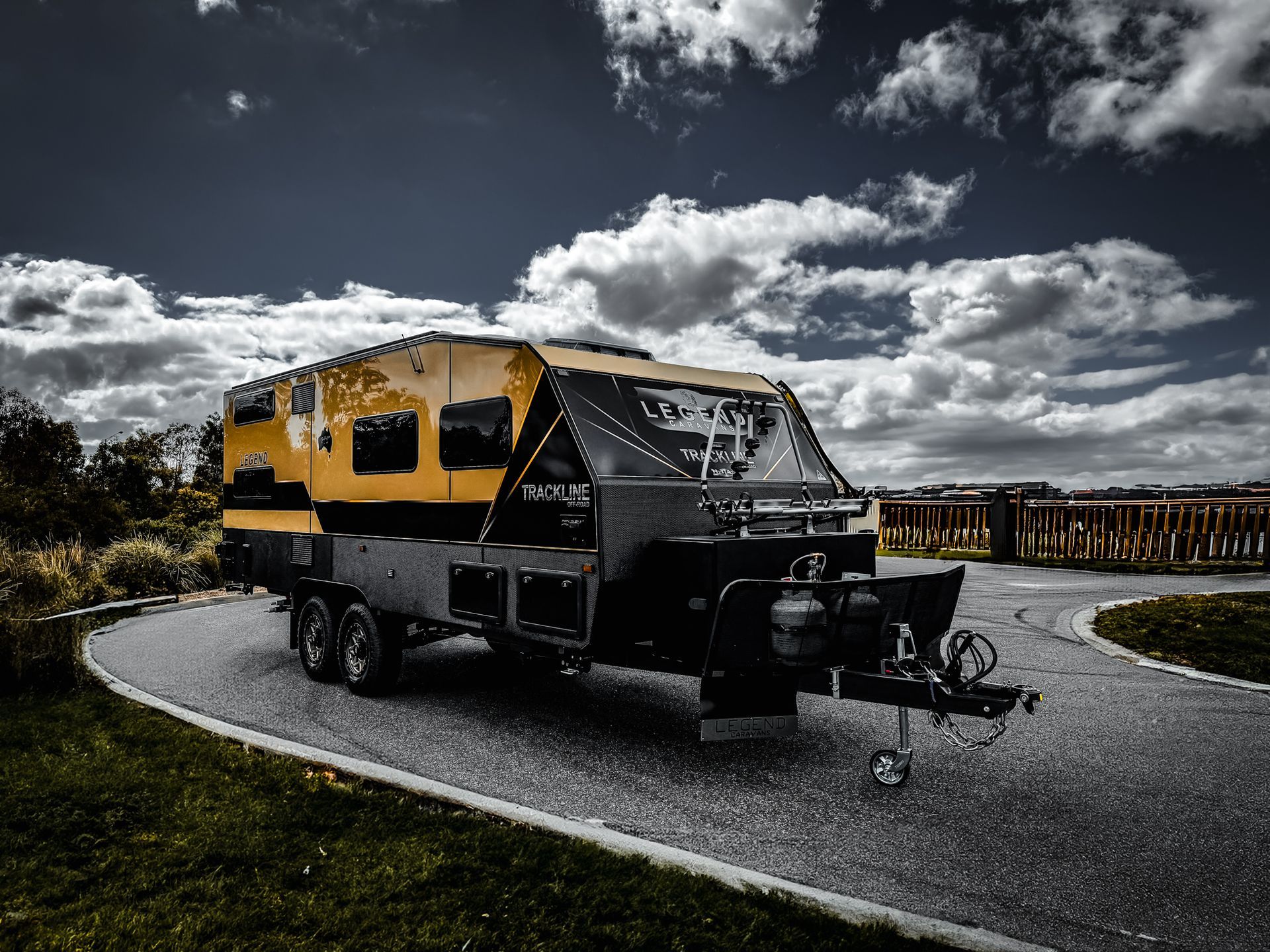

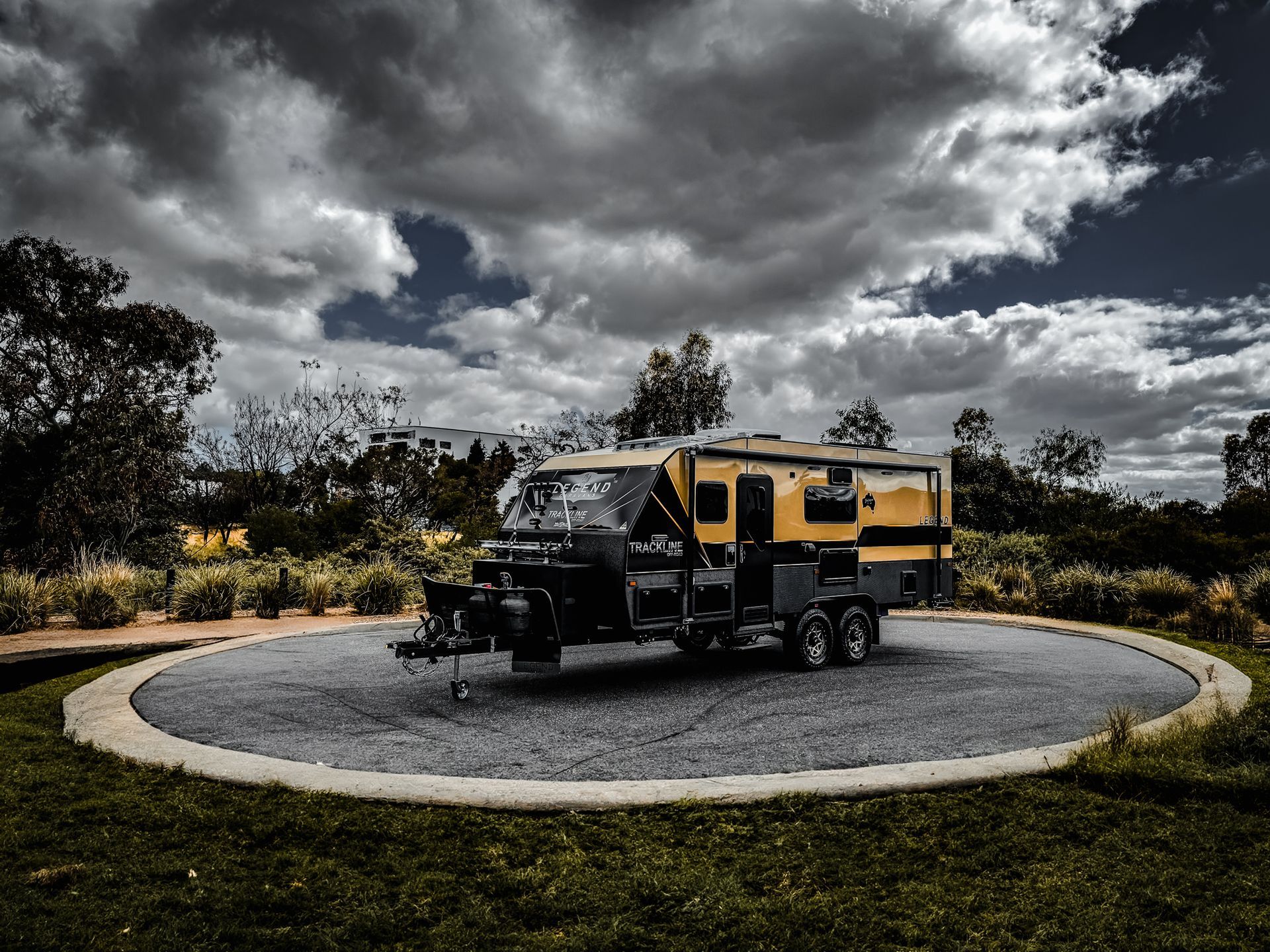

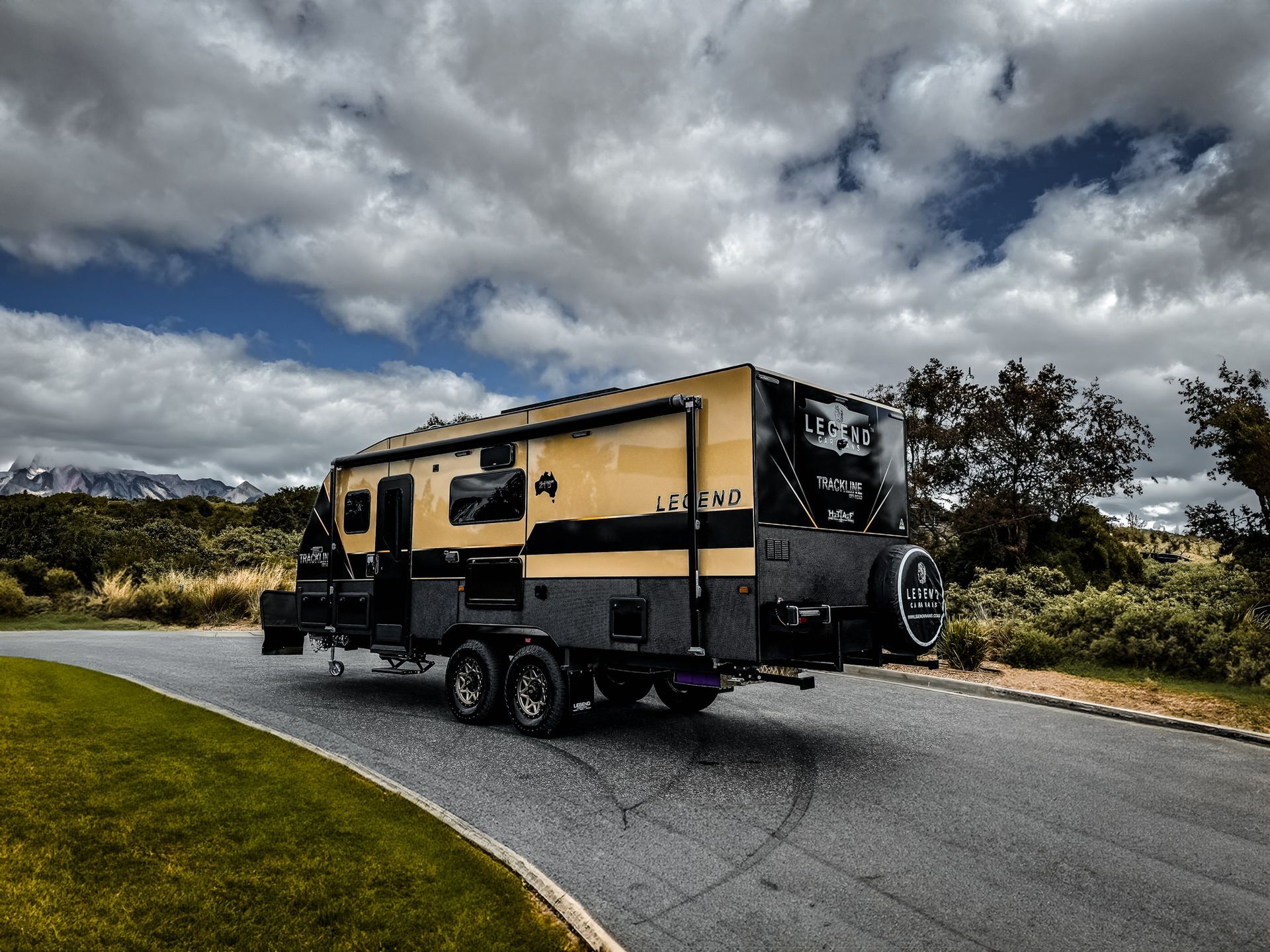

Legend Trackline Off-Road Bunka Family Series

The Legend Trackline Bunka Family Series is built for serious off-road adventures. At its foundation, a 150mm A-frame connects seamlessly to an overengineered Legend-designed S&M truss system, ensuring exceptional strength and reliability. Towing is made effortless with the Cruisemaster 3,500kg DO35 hitch, providing secure and smooth articulation between the van and your tow vehicle.

For superior ride performance, this model features Cruisemaster’s most robust suspension system — the XT Airbag unit with remote control. Available exclusively in tandem and triple axle configurations, the Bunka Series can be upgraded to the Cruisemaster ATX system, supporting up to a 4.5T ATM. Stopping power is delivered by 12-inch electric brakes, offering dependable braking in all terrains.

Premium Plumbing & Recovery Features

At Legend Caravans, we prioritize durability without compromise. That’s why our entire range exclusively uses solid brass fittings instead of standard PVC connectors — delivering enhanced longevity and protection without unnecessary weight.

Strategically placed, rated recovery points come standard with this van, offering essential support when recovery is required in off-road conditions.

Engineered for Endurance

Legend caravans are constructed with a precision-engineered aluminium frame, assembled using the Hanrob self-piercing riveting system. This advanced method allows for controlled flexibility under extreme conditions, minimizing the risk of structural cracking. Roof and wall components are lock-bolted together and securely mounted to the chassis, creating a unified and highly durable structure.

Unlike traditional welding, self-piercing rivets avoid heat damage — critical when working with pure aluminium and its alloys, which melt below 800°C. These fasteners are also compatible with galvanized and coated surfaces, reducing damage and eliminating the need for re-coating or re-plating.

Lockbolts offer approximately 100% bearing contact in the locking grooves, compared to just 30–35% with traditional nuts and bolts. This not only improves structural integrity but also provides superior resistance to vibration-related loosening — as demonstrated by the industry-standard Junker test.

Superior Floor, Roof & Insulation System

Every Trackline Bunka Family Series caravan features a single-piece, rot-free honeycomb floor that is both lightweight and incredibly strong. The roof is built with a single-piece fiberglass sandwich panel that offers outstanding strength, rot resistance, hail protection, and premium thermal and acoustic insulation.

The external cladding consists of composite panels made from aluminium sheets over a high-performance polyethylene core. Wall cavities are filled with AIR-CELL Insuliner — a fire-resistant, closed-cell insulation layer encased in reflective foil, offering exceptional temperature control in all weather conditions.

INTERNAL - PLUMBING - ELECTRICAL

Premium Craftsmanship Meets Innovative Design

At Legend Caravans, every detail is engineered to elevate your experience. From luxurious finishes to cutting-edge technology, our caravans are crafted for comfort, durability, and performance in every journey.

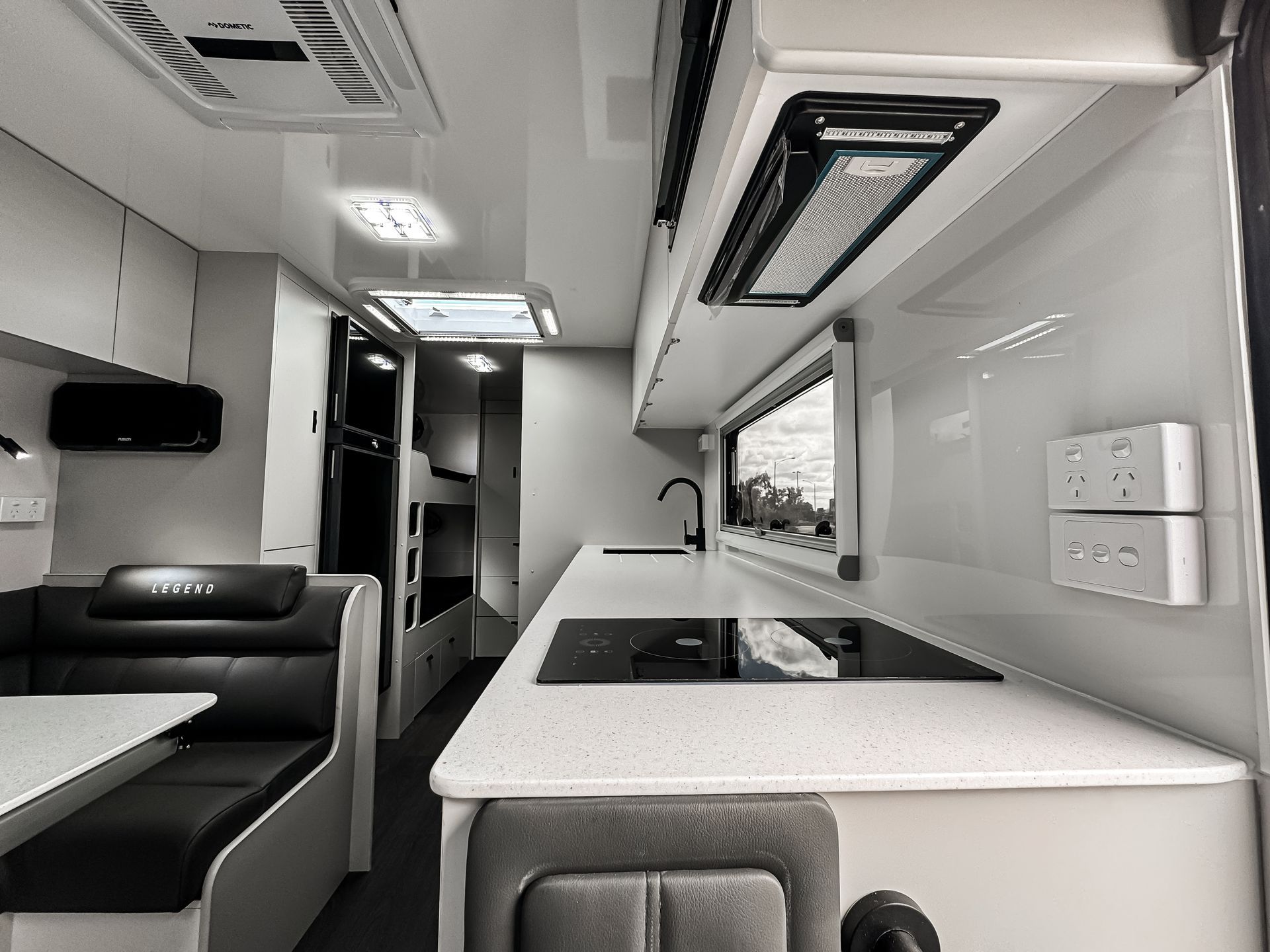

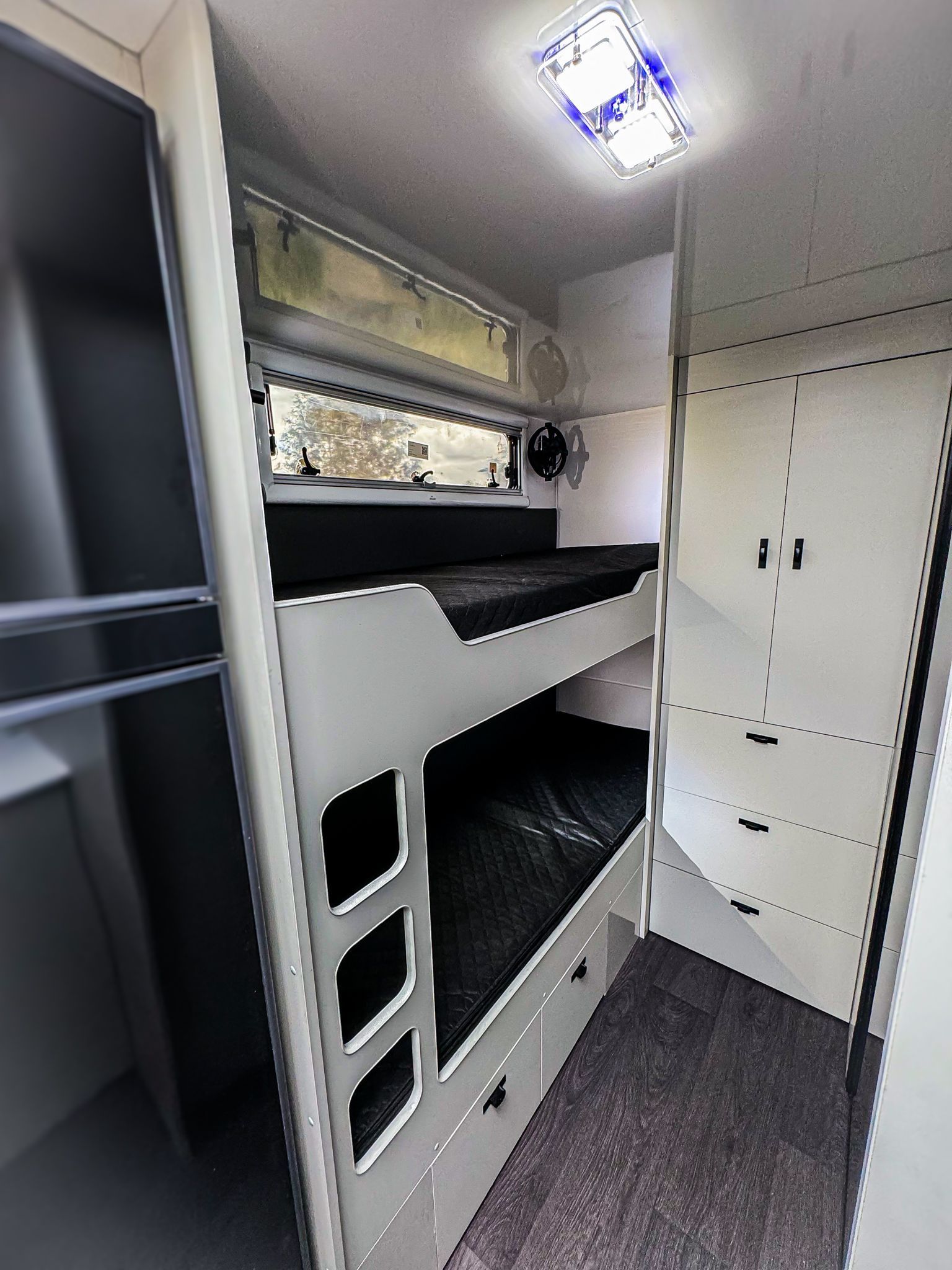

Interior Excellence

Step inside and experience sophistication. Beautifully finished joinery and rich leather upholstery create an upmarket, refined ambience. A generous 1.96m ceiling height enhances the feeling of openness, delivering a spacious and welcoming atmosphere.

The flat floor design eliminates intrusive wheel arches, offering greater freedom in interior layout. This model features high-quality, custom-designed drawers with a premium lift-up stay system, combining functionality with luxury.

Legend Drawer System

Our Legend Drawer Systems are tailored to support modern living and creative interior solutions:

• Slim Profile, Maximum Space: At just 12.8 mm, the straight side panels (inside and out) integrate seamlessly into furniture while maximizing usable space.
• Advanced Motion Technology: Featuring our innovative SPECIAL cabinet profile, drawers glide effortlessly with minimal force, enhanced by a synchronised, feather-light mechanism.
• Flexible Motion Options: Compatible with three advanced motion technologies, including an adaptive soft-close system for smooth and silent operation.

Premium Benchtops

All Legend Caravans are equipped with Solid Surface Premium Acrylic Benchtops — made from 100% high-performance acrylic:

• Hygienic & Non-Porous: Resistant to mould, mildew, and bacteria. NSF certified and food-safe.
• Seamless Appearance: Inconspicuous joins eliminate crevices where dirt and bacteria can accumulate.
• Low Maintenance: Easy to clean with no need for sealing or special treatments.
• Versatile & Thermoformable: Can be shaped and moulded for both vertical and horizontal applications.

Professional Plumbing System

Legend Caravans employs fully qualified plumbers with over 60 years of combined industry experience. Every plumbing installation is executed to the highest standard:

• Innovative Brass Fittings: We are the first manufacturer in the industry to use brass fittings for hot and cold water lines, ensuring durability and leak resistance.
• Certified Gas Installations: All caravans with gas systems are rigorously tested and certified.
• Outdoor Connections: Models with outdoor kitchens include convenient hot and cold water outlets.

Electrical System: EcoFlow Technology

The Trackline Bunka is powered by a premium 48V electrical system featuring:

• 5kWh Lithium Battery (Upgradeable to 15kWh)
• EcoFlow Plug-and-Play Design
• 2 MPPT Solar Regulators + 1 DC-DC Charger (also usable as solar input)
• 3600W Continuous Inverter Power

EcoFlow, established in the U.S. in 2017, now supports over 2.5 million users across 100 countries. The modular system allows users to tailor power setups based on individual needs. Its compact design is ideal for RV environments, with foolproof cable connections for fast, error-free installation.

Solar Panels: This model typically includes 4 x 200W panels (depending on caravan size and layout). Custom configurations are available.

Aluminium Frame Construction

Legend Caravans are built on a robust aluminium frame using the Hanrob self-piercing riveting system — designed to endure Australia’s toughest conditions:

• No Heat Damage: Self-piercing rivets eliminate issues associated with welding aluminium.
• Lockbolt Technology: Provides 100% bearing surface in the locking grooves, vastly superior to conventional nut and screw fittings. Demonstrated exceptional vibration resistance in Junker testing.

Superior Structural Integrity

• One-Piece Honeycomb Floor: Lightweight, rot-free, and highly durable.
• One-Piece Fibreglass Roof: Hail-resistant, thermally insulated, and acoustically protected.
• Composite Exterior Cladding: Aluminium over a polyethylene core for maximum strength and energy efficiency.
• AIR-CELL Insuliner Wall Insulation: Fire-resistant, closed-cell insulation with reflective foil layers to regulate internal temperatures year-round.
