CHASSIS - EXTERIOR - CONSTRUCTION

Built for the Outback. Engineered for Excellence.

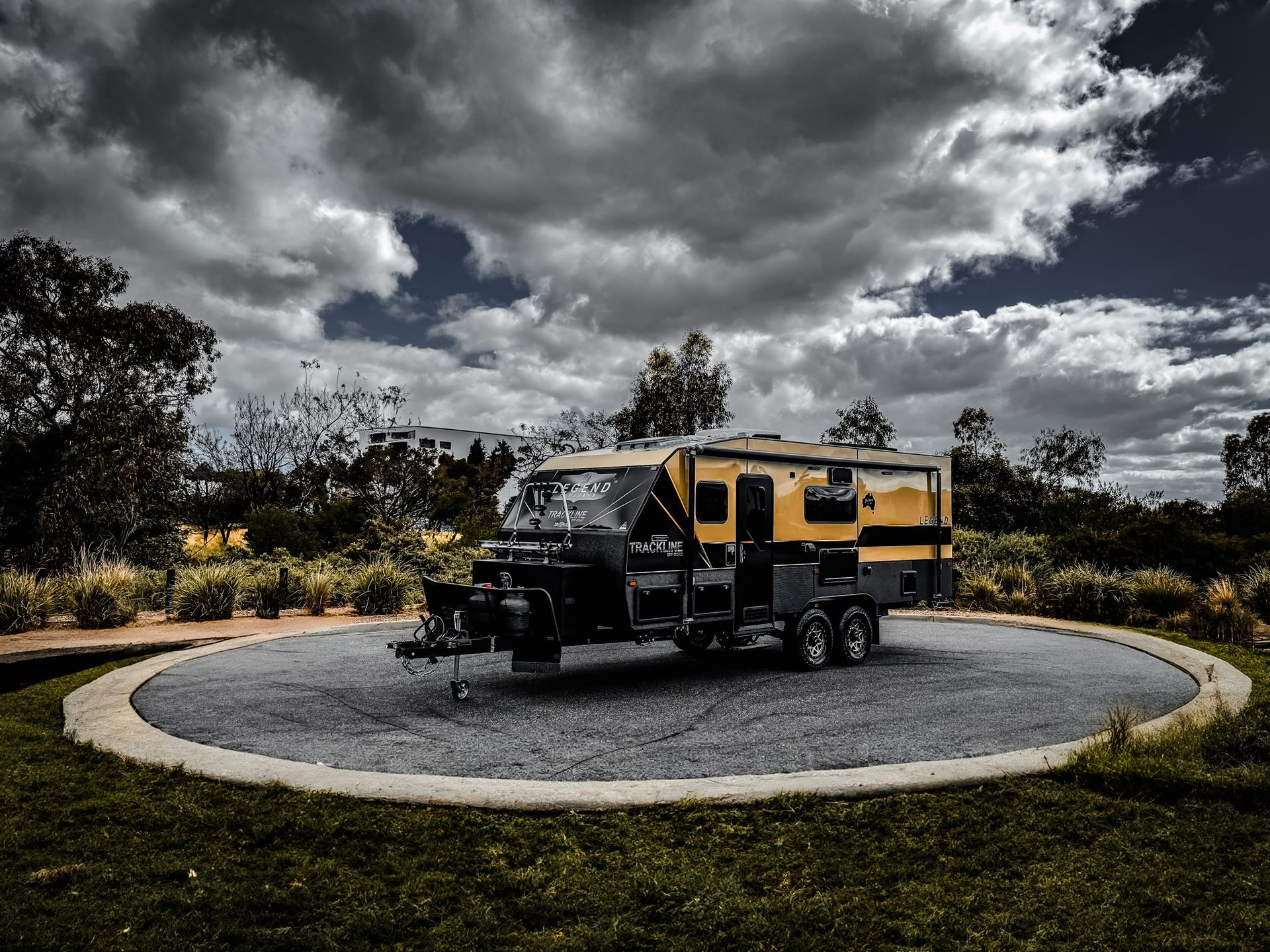

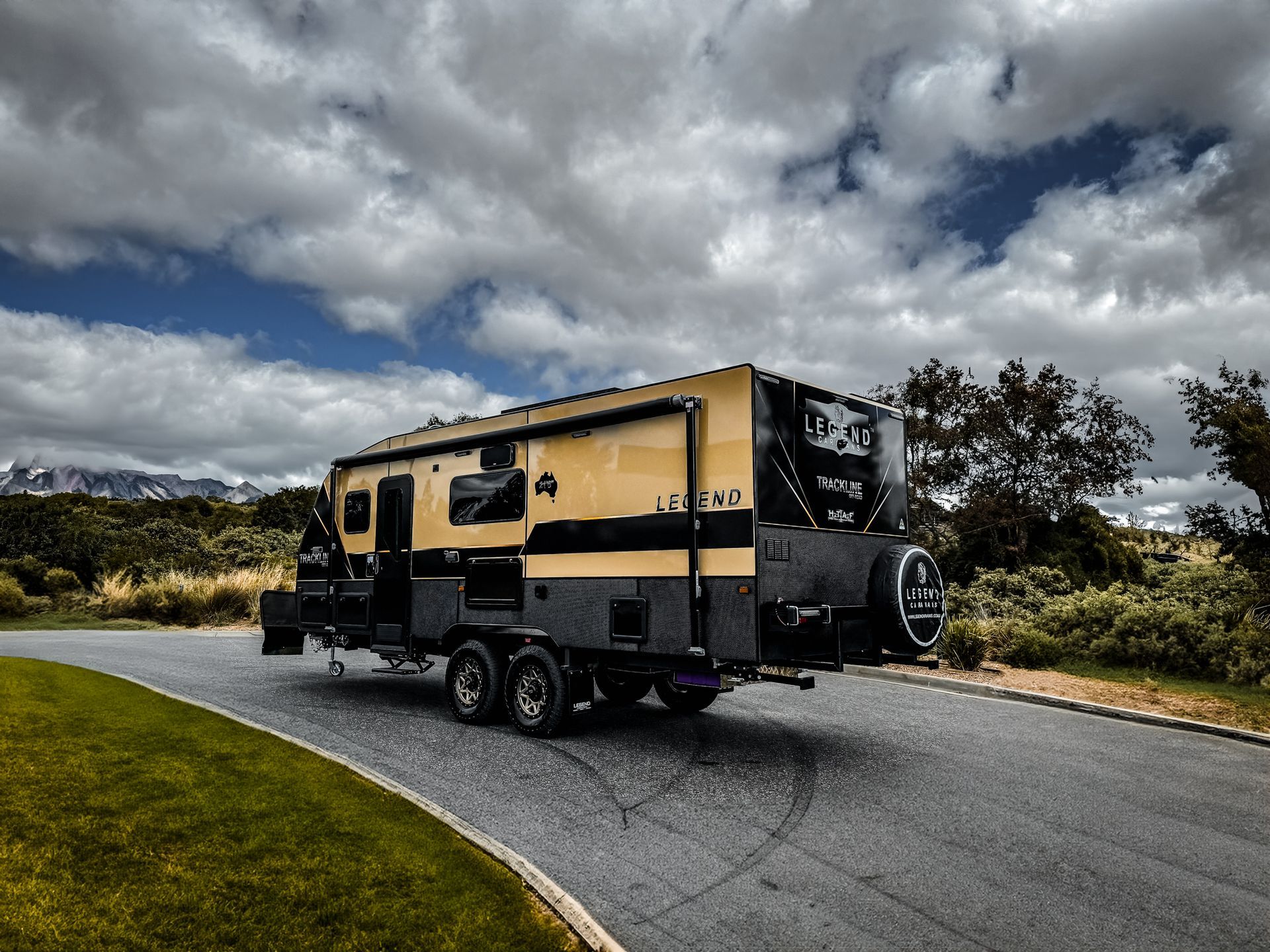

The Legend Trackline Off-Road Van is engineered to conquer Australia's rugged terrain with confidence and ease. At its foundation is the renowned Legend Trackline chassis, combined with a robust 150mm A-frame that connects to our overengineered S&M chassis—built tough and designed with purpose. Sitting on an 8" Australian-made chassis, it offers outstanding ground clearance and incorporates multiple reinforced support beams for superior strength and off-road durability. A glance underneath tells you this van is built to go the distance.

Towing & Suspension

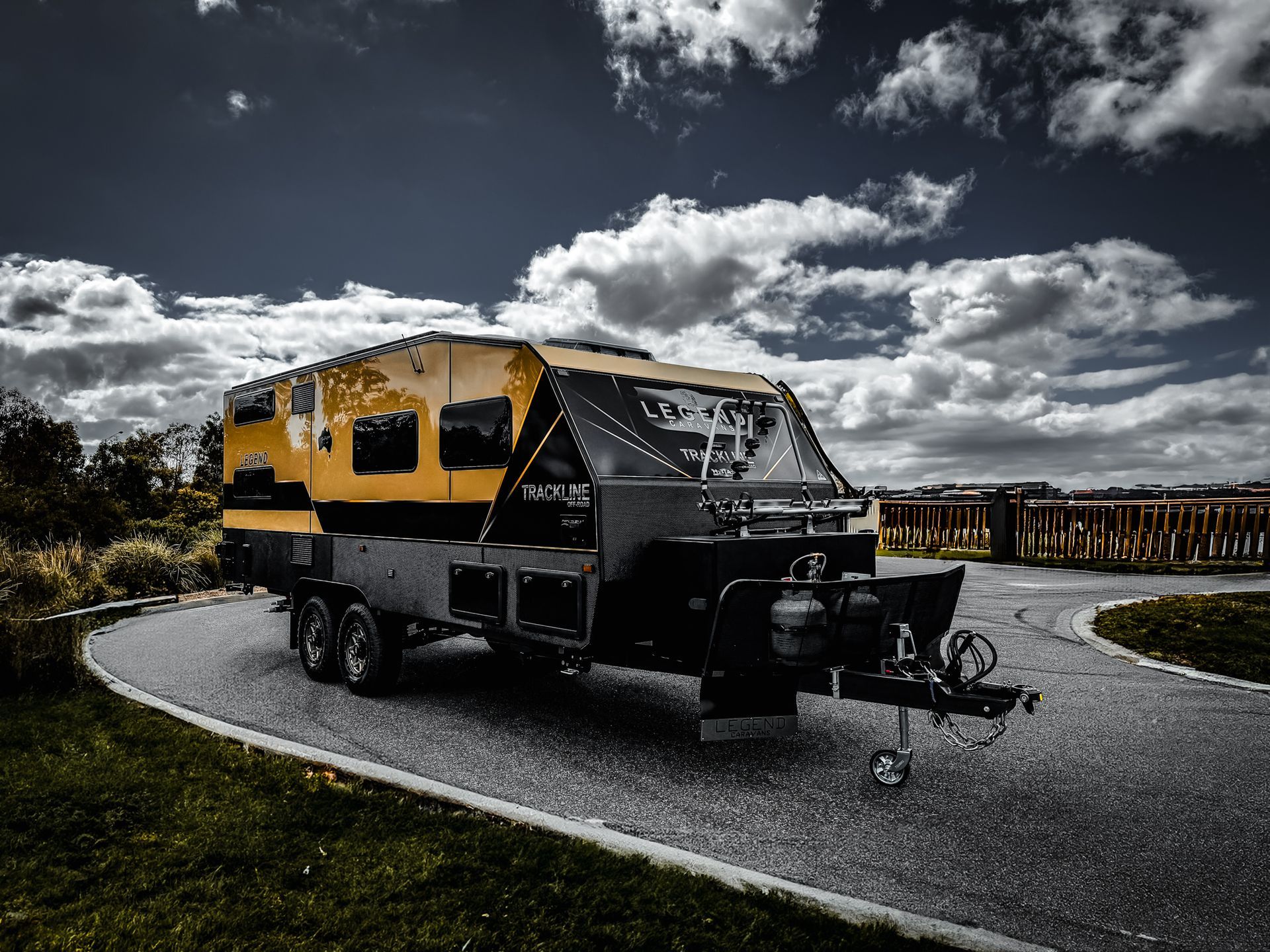

Towing is made seamless and secure with the Cruisemaster DO35 3500kg hitch, ensuring a solid connection to your tow vehicle. The Cruisemaster XT suspension system—our most robust option—is standard, available in both single and tandem axle configurations. For those needing extra capacity, this suspension is upgradeable to a 4.5T ATM. 12" electric brakes provide reliable stopping power, giving you peace of mind wherever the road (or lack thereof) may lead. Rated recovery points are also integrated, providing essential support when recovery situations arise.

Construction Excellence

Our caravans are constructed using a full aluminium frame, assembled with the Hanrob self-piercing riveting system. This method allows for flex under extreme conditions to prevent cracking, while eliminating the heat-related issues of traditional spot welding. The roof and wall components are lock-bolted together and secured to the chassis, creating a unified and enduring structure. Unlike standard nuts and bolts that only provide 30–35% contact and are vibration-sensitive, lockbolts offer nearly 100% bearing area, delivering unmatched vibration resistance—verified by the rigorous Junker test.

Premium Materials. Thoughtful Design.



• Plumbing: All plumbing connections feature brass fittings—not PVC—for enhanced durability and protection without additional weight.
• Flooring: The van features a one-piece, rot-free honeycomb floor that is both lightweight and strong.
• Roof: Constructed with a one-piece fiberglass sandwich panel, offering rot resistance, superior strength, hail protection, and excellent thermal and acoustic insulation.
• Wall Insulation: The external cladding consists of composite aluminium panels over an insulating polyethylene core. Internal wall voids are filled with AIR-CELL Insuliner, a reflective, fire-resistant insulation that helps moderate interior temperatures.

INTERNAL - PLUMBING - ELECTRICAL

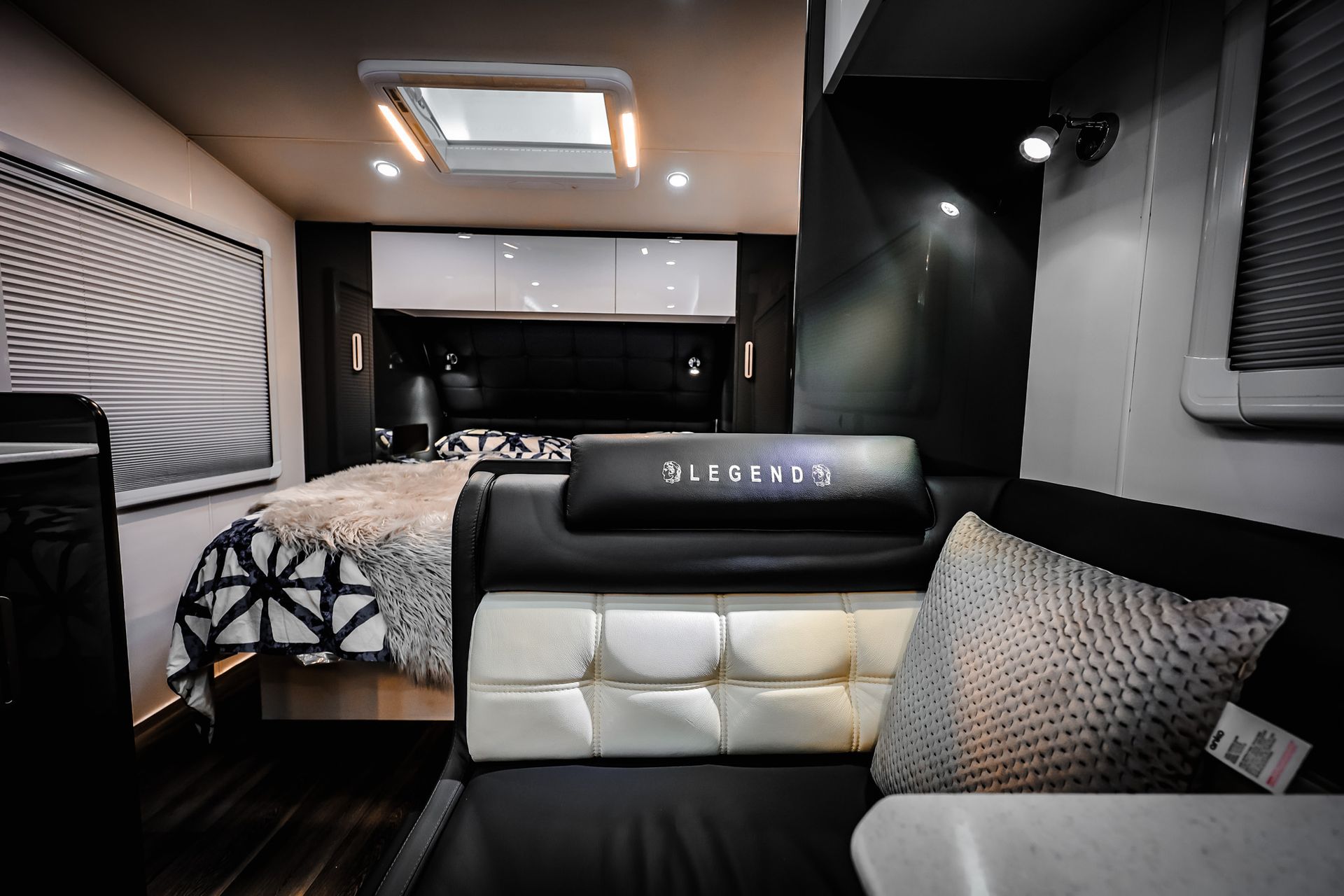

Premium Interior Craftsmanship

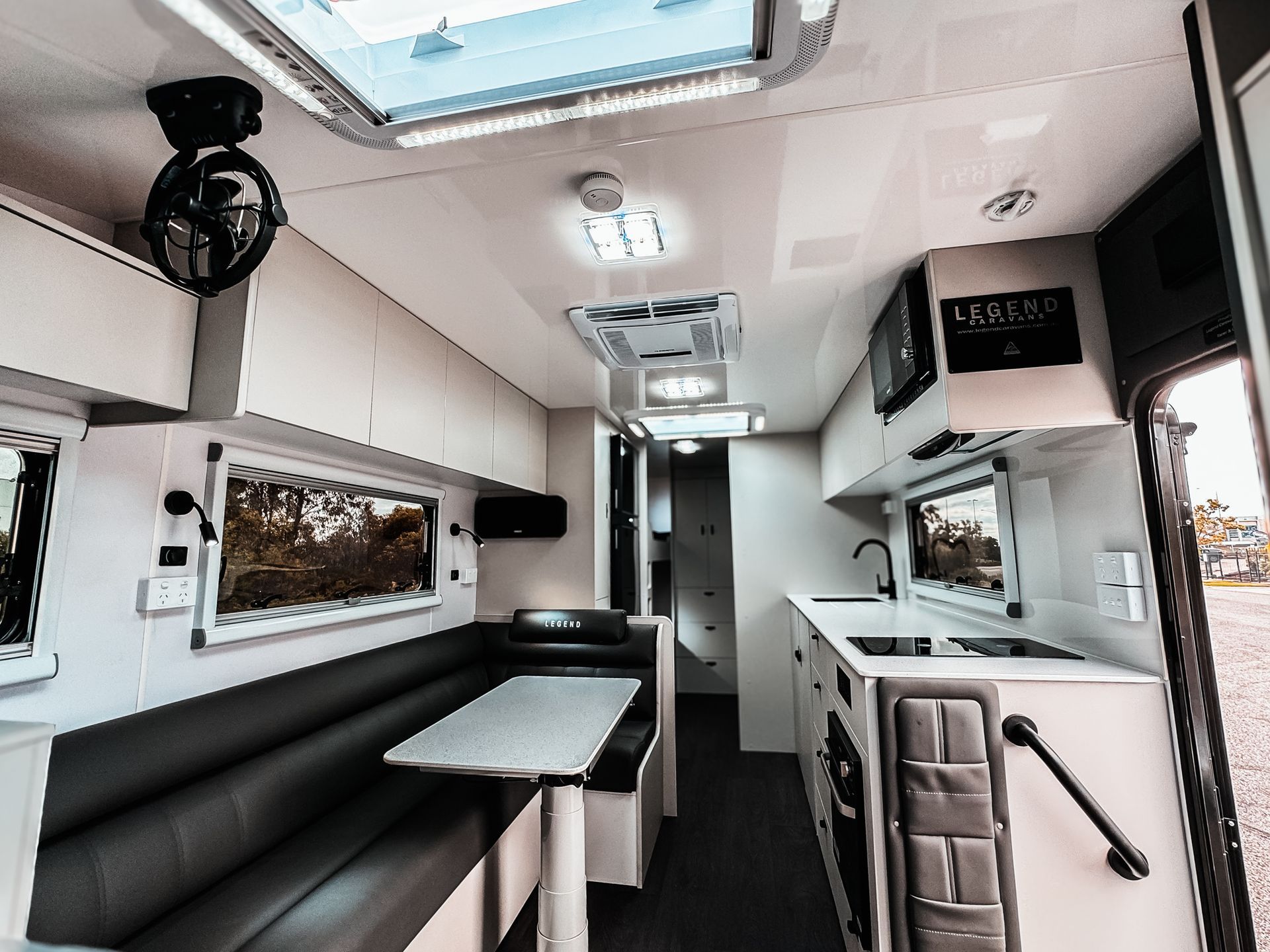

Experience refined luxury with beautifully finished joinery and rich Microfiber Leather upholstery, creating a sophisticated, upmarket ambience. The generous 1.96m high ceiling enhances the sense of space, ensuring a welcoming and open interior environment.

Legend Drawer Systems: Innovation Meets Style

Our Legend Drawer Systems reflect the latest in modern design trends. With sleek, 12.8 mm slim side panels—straight on both the interior and exterior—they integrate seamlessly into any cabinetry, maximising usable space without compromising on aesthetics.

Equipped with our exclusive SPECIAL cabinet profile, the system features:

• Low opening forces
• Feather-light, synchronised glide
• Compatibility with three motion technologies, including a soft-close function that adapts accordingly

Solid Surface Premium Acrylic Benchtops

Every Legend Caravan is fitted with high-performance, 100% acrylic solid surface benchtops—designed for both durability and hygiene. These premium surfaces offer:

• Hygienic & Non-Porous: Resistant to mould, mildew, and bacteria. NSF-certified and safe for food preparation.
• Seamless Integration: Inconspicuous joints eliminate crevices, ensuring a cleaner, sleeker look.
• Easy Maintenance: No sealing required—simply wipe clean.
• Thermoformable & Versatile: Can be moulded and shaped for both vertical and horizontal applications.

Plumbing: Precision Engineered

At Legend Caravans, our fully qualified plumbing team brings over 60 years of combined experience in the caravan industry. We're proud to be the first in the industry to introduce brass fittings for both hot and cold water systems, offering unmatched reliability and longevity.

Our plumbing systems feature:

• Certified gas installations with compliance certification
• Latest technology integration with efficient water delivery
• Outdoor cooking compatibility with hot and cold water access

Your comfort is our priority—our team is committed to practical, long-lasting plumbing solutions tailored for life on the road.

Electrical: Advanced Power Management

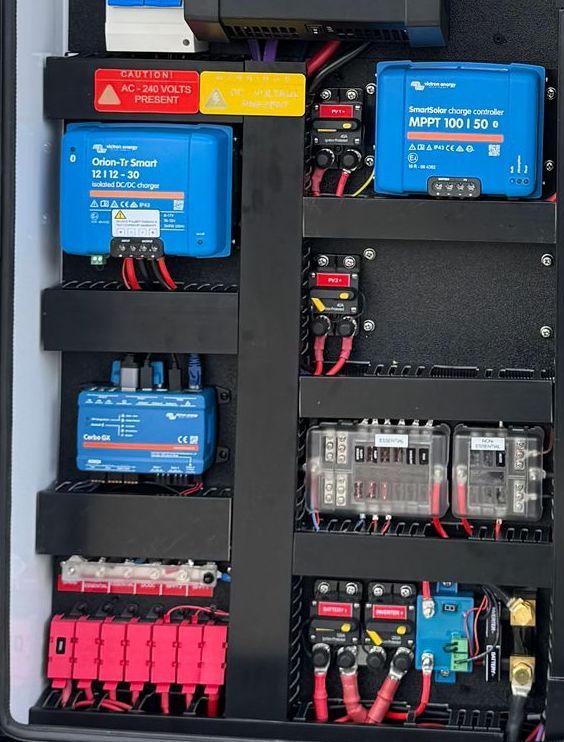

The Legend Trackline Off-Road is equipped with a premium Victron Pack 1 electrical system, built for reliability in off-grid conditions.

This system includes:

• 200Ah Lithium Battery
• Victron Battery Management System, designed for RV applications
• 30Amp DC-DC Charger with solar input
• 30Amp AC-DC Charger
• Battery Monitor
• 2 x 200W solar panels and smart control modules
